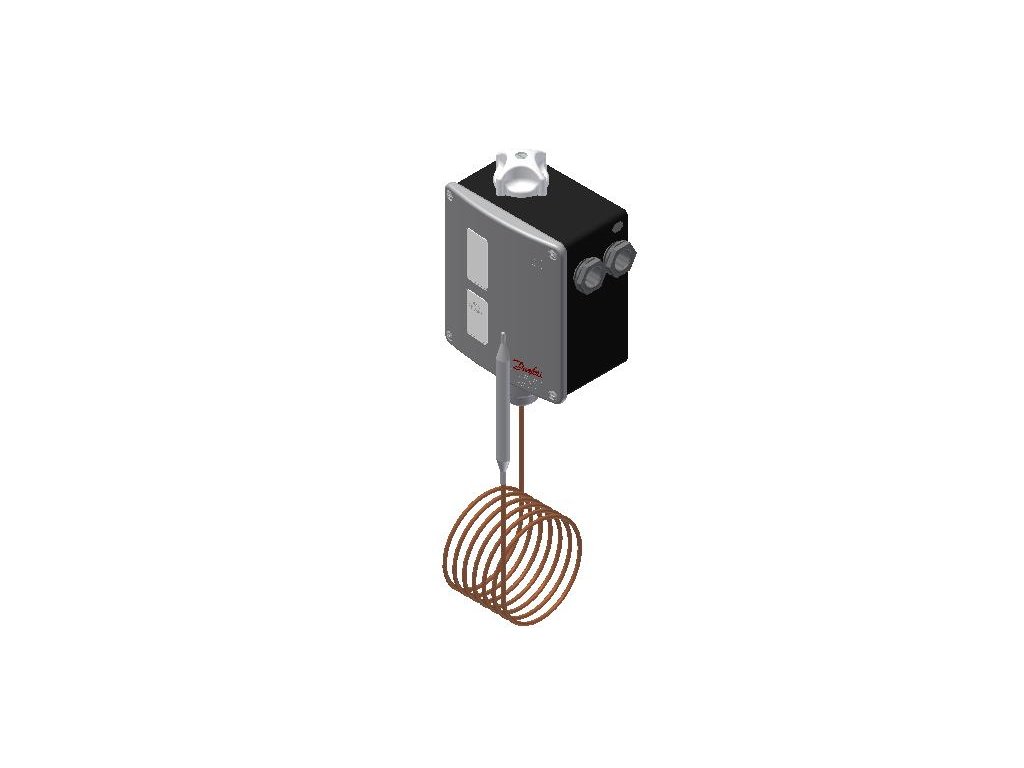

Termostat, RT107
Kód: 017-513666Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | RT |
|---|---|
| Hmotnost: | 0.82 kg |
| EAN: | 5702423119622 |
| Ambient temperature range [°F] [min]: | -58 |
| Cap. tube length fraction [in]: | 78 3/4 in |
| Max. sensor temperature [°F]: | 419.0 |
| Electrical connection size: | 2xPg 13.5 |
| Height (EF000040): | 276 |
| Contact function: | SPDT |
| SCIP dossier no.: | c4c20ce6-4a07-4caa-9394-1e7d8b13ffec |
| Charge type: | Partial |
| Diff. @ Min. range setting[°C]: | 6.0 |
| Width (EF000008): | 76 |
| Electrical connection: | Screwed cable entry |
| Temperature range [°F] [min]: | 158 |
| Differential type: | Fixed |
| Serviceable: | Contact systems |
| Reset function: | Manual Max |
| Enclosure rating IP: | IP54 |
| Ambient temperature range [°C] [min]: | -50 |
| Diff. @ Max. range setting[°C]: | 1.8 |
| Product accessories: | Switches accessories |
| Sensor size (Ø x L) [in]: | 3/8 x 4 1/4 in |
| Sensor pocket length min. [in]: | 4 13/32 in |
| Depth (EF000049): | 128 |
| Contact rating: | AC15=3 A, 400 V, AC1=10 A, 400 V, AC3=4 A, 400 V, DC13=12 W, 220 V, LR=28 A, 400 V |
| IFTTT support available (EF011072): | FALSE |
| Compatible with Apple HomeKit (EF014925): | FALSE |
| Compatible with Google Assistant (EF014926): | FALSE |
| Sensor pocket length min. [mm]: | 112 |
| Product description: | Thermostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi pack |
| Max. sensor temperature [°C]: | 215 |
| Approval: | CCC, CE, CMIM, DNV, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, RMRS, RoHS, RoHS China, TYSK |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.2-1.5 mm2, Flex, no ferrules: 0.2-2.5 mm2, Solid/stranded: 0.2-2.5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Sensor size (Ø x L) [mm]: | 9.5 x 110 mm |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP) (EF005474): | IP54 |
| Temperature range [°F] [max]: | 302 |
| SCIP dossier product name: | RT Thermo & RT Diff. Thermo |
| Temperature range [°C] [min]: | 70 |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 10A |
| Sensor type: | Remote bulb |
| Compatible with Amazon Alexa (EF014927): | FALSE |
| Temperature range [°C] [max]: | 150 |
| Quantity per packing format: | 15 |
| Ambient temperature range [°F] [max]: | 158 |
| Capillary tube length [mm]: | 2000 |
| Explosion-proof (EF004663): | FALSE |
-
Thermostat type RT: Datový list
-
Thermostat, types RT 107, RT 108, RT 120, RT 123, RT 124: Instalační příručka
