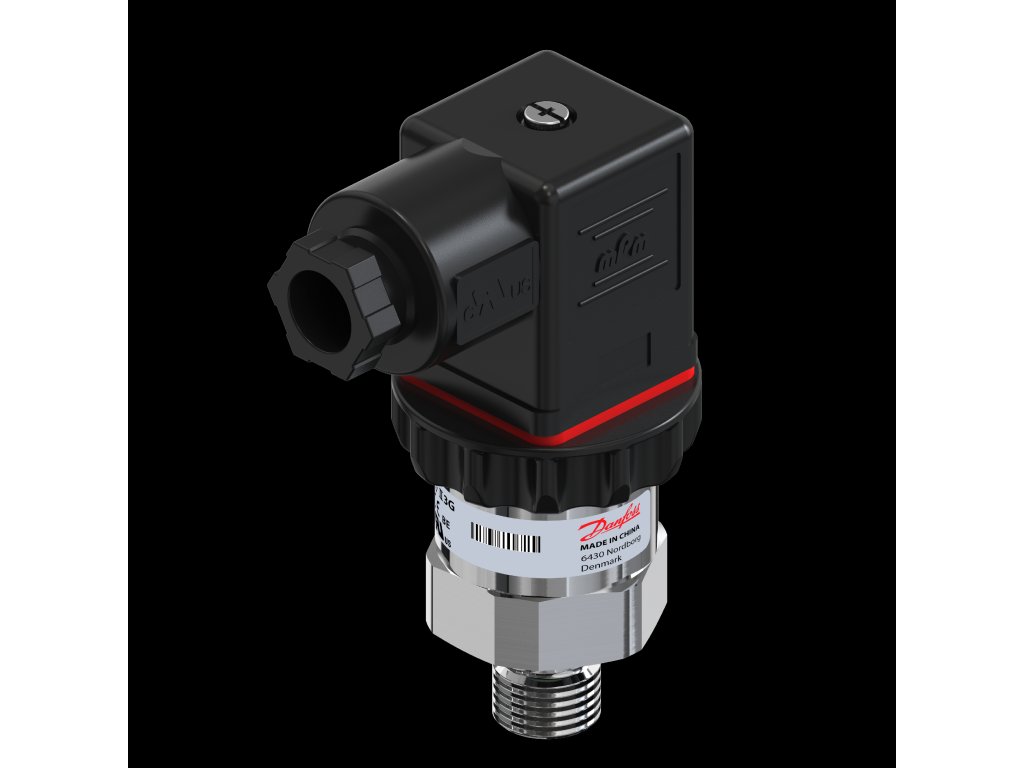

Tlakový snímač s vysílačem, DST P40I, 0 bar - 100 bar, 0 psi - 1450 psi
Kód: 078G5005Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | DST P40I, do agresivního prostředí |
|---|---|
| Hmotnost: | 0.1 kg |
| EAN: | 5702428526012 |
| Burst pressure [bar]: | 200.0 |
| Medium temperature range [°C] [max]: | 85 |
| Readable (EF024476): | FALSE |
| Cable length (EF000536): | 0 |
| Electrical connection size: | Pg 9 |
| UL mark: | Yes |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Specification key: | DST P40I-3011-A1GB04-1 |
| Height (EF000040): | 48 |
| SCIP dossier no.: | 6b078679-471a-4330-8fd4-d63473b641b0 |
| Electrical connection (EF003701): | Other |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | ISO 1179-2 |
| Width (EF000008): | 56 |
| Measuring element (EF021417): | Piezo |
| Medium temperature range [°C] [min]: | -15 |
| Electrical connection: | Angular connector |
| Output signal: | Current |
| Suitable for gases (EF007249): | TRUE |
| Pressure connection notes: | A |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Sealed gauge |
| Ambient temperature range [°C] [min]: | -25 |
| Compensated temp. range [°C] [max]: | 80 |
| Suitable for air (EF021466): | TRUE |
| Max. overpressure (EF022533): | 150.0 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Male |
| Suitable for water (EF020334): | TRUE |
| Measuring range (EF001836): | 0.00-100.00 |
| Depth (EF000049): | 98 |
| Output signal [mA] [min]: | 4 |
| - common: | Pin 2 |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 100.00 |
| Packing format: | Multi pack |
| Approval: | C UL US UL Recognized, CE |
| With temperature sensor (EF006034): | TRUE |
| Pressure range [psi] [max]: | 1450.00 |
| Feed pressure (EF020276): | 100.00 |
| Flange compression class (EF020149): | Other |
| Electrical conn. Male/Female: | Male |
| Suitable for steam (EF020335): | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display (EF000458): | FALSE |
| CE mark: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Pulse-snubber: | No |
| Pressure range [bar] [min]: | 0.00 |
| Ambient temperature range [°C] [max]: | 85 |
| Supply voltage (EF000104): | 32.00 |
| Suitable for glycol (EF002310): | TRUE |
| Degree of protection (IP) (EF005474): | IP65 |
| Overload pressure max. [bar]: | 150.0 |
| SCIP dossier product name: | Sensor DST P40I + M |
| Output signal (EF000506): | 4 - 20 mA |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil (EF021672): | TRUE |
| Suitable for ammonia (EF021671): | TRUE |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 20 |
| Supply voltage [V] DC [min]: | 9.00 |
| Compensated temp. range [°C] [min]: | 0 |
| Explosion-proof (EF004663): | FALSE |
-
