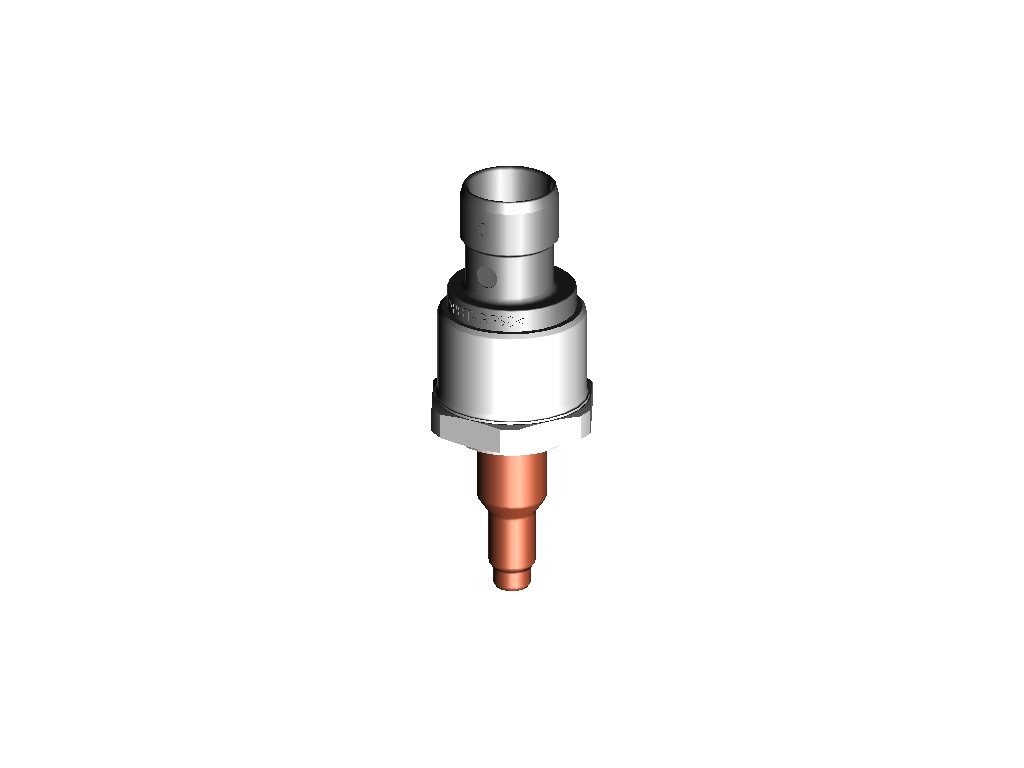

Tlakový snímač s vysílačem, DST P110, -1 bar - 49 bar, -14.5 psi - 710.68 psi
Kód: 075G4224Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | DST P110 |
|---|---|
| Hmotnost: | 0.06 kg |
| EAN: | 5715162938775 |
| Medium temperature range [°C] [max]: | 135 |
| Electrical connection size: | 3 pin |
| UL mark: | Yes |
| Specification key: | DST P110-T136-C2EB07-0 |
| Pressure connection size: | Solder tube |
| Pressure connection standard: | For solder tube |
| Ratiometric of Vsupply [%] [max]: | 90.0 |
| Identical product: | 075G1282 |
| Medium temperature range [°C] [min]: | -40 |
| Electrical connection: | Round Packard Metri-Pack |
| Output signal: | Ratio metric |
| Enclosure rating IP: | IP69K |
| Pressure reference: | Sealed gauge |
| Ambient temperature range [°C] [min]: | -40 |
| Compensated temp. range [°C] [max]: | 125 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Male |
| TEB inside CTR ±FS [%]: | 3.00 |
| International Article Number: | 5715162938775 |
| - common: | Pin A |
| Pressure connection type: | Solder, ODM |
| + output: | Pin C |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 49.00 |
| Packing format: | Industrial pack |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized, CE |
| Pressure range [psi] [max]: | 710.68 |
| REACH Candidate List substances: | No |
| Electrical connection standard: | 150.2 SERIES |
| Contains batteries: | No |
| + supply: | Pin B |
| Electrical Connector Color: | Black |
| CE mark: | Yes |
| Housing material: | 304L |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Wetted part material: | 304L 316L |
| Pulse-snubber: | No |
| Ratiometric of Vsupply [%] [min]: | 10.0 |
| Pressure range [bar] [min]: | -1.00 |
| Ambient temperature range [°C] [max]: | 125 |
| Overload pressure max. [bar]: | 199.0 |
| Overload pressure max. [psi]: | 2886 |
| Response time max. [ms]: | 2 |
| Supply voltage [V] DC: | 5.00 |
| Pressure range [psi] [min]: | -14.50 |
| Quantity per packing format: | 55 |
| Compensated temp. range [°C] [min]: | -40 |
-
Pressure transmitter, type DST P110: Datový list
-
Pressure transmitters DST P1XX: Instalační příručka
