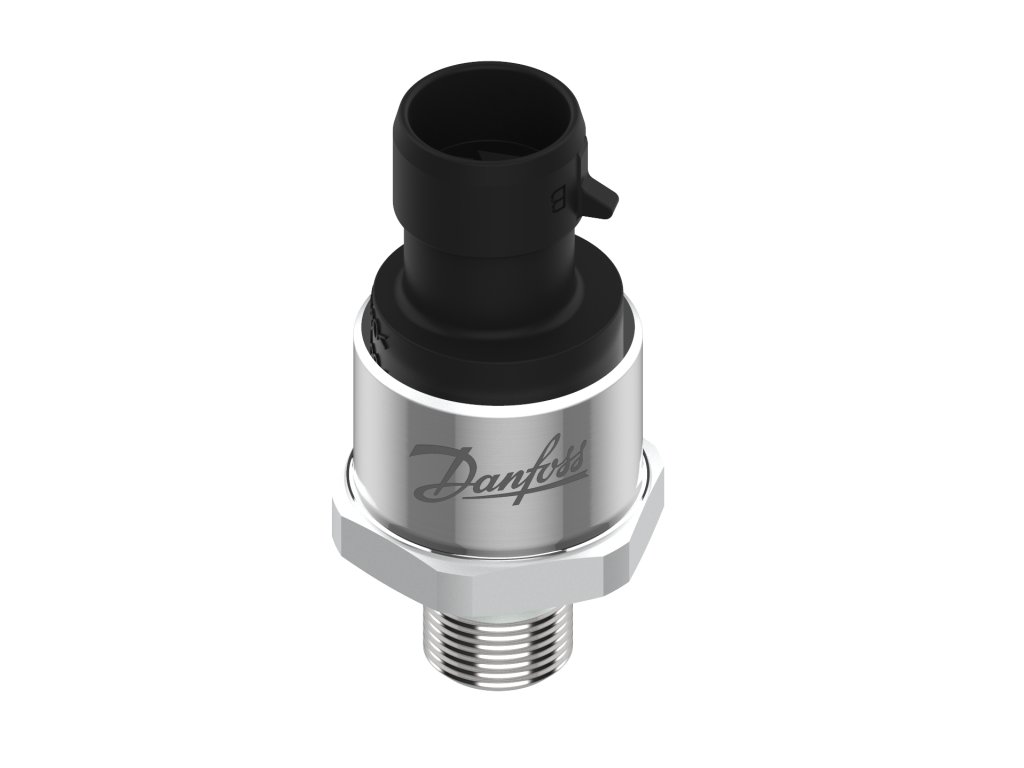

Tlakový snímač s vysílačem, DST P140, 0 bar - 16 bar, 0 psi - 232 psi
Kód: 075G4111Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | DST P140 |
|---|---|
| Hmotnost: | 0.06 kg |
| EAN: | 5702424594152 |
| Medium temperature range [°C] [max]: | 135 |
| Readable (EF024476): | FALSE |
| Cable length (EF000536): | 0 |
| Electrical connection size: | 3 pin |
| UL mark: | Yes |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Specification key: | DST P140-2216-C2GB04-2 |
| Height (EF000040): | 190 |
| Electrical connection (EF003701): | Other |
| Pressure connection size: | 1/4-A |
| Pressure connection standard: | ISO 1179-2 |
| Ratiometric of Vsupply [%] [max]: | 90.0 |
| Width (EF000008): | 190 |
| Measuring element (EF021417): | Piezo |
| Identical product: | 075G1135 |
| Medium temperature range [°C] [min]: | -40 |
| Electrical connection: | Round Packard Metri-Pack |
| Output signal: | Ratio metric |
| Suitable for gases (EF007249): | TRUE |
| Enclosure rating IP: | IP69K |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -40 |
| Compensated temp. range [°C] [max]: | 135 |
| Suitable for air (EF021466): | TRUE |
| Max. overpressure (EF022533): | 64.0 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Male |
| Suitable for water (EF020334): | TRUE |
| Measuring range (EF001836): | 0.00-16.00 |
| Depth (EF000049): | 190 |
| TEB inside CTR ±FS [%]: | 3.00 |
| International Article Number: | 5702424594152 |
| - common: | Pin A |
| Pressure connection type: | G |
| Thread size (EF022694): | Other |
| + output: | Pin C |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 16.00 |
| Packing format: | Industrial pack |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized, CE |
| With temperature sensor (EF006034): | TRUE |
| Pressure range [psi] [max]: | 232.00 |
| Feed pressure (EF020276): | 16.00 |
| Flange compression class (EF020149): | Other |
| Suitable for steam (EF020335): | TRUE |
| REACH Candidate List substances: | No |
| Electrical connection standard: | 150.2 SERIES |
| Contains batteries: | No |
| + supply: | Pin B |
| With display (EF000458): | FALSE |
| Electrical Connector Color: | Black |
| CE mark: | Yes |
| Housing material: | 304L |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Wetted part material: | 304L/316L |
| Pulse-snubber: | No |
| Ratiometric of Vsupply [%] [min]: | 10.0 |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 8.00 |
| Ambient temperature range [°C] [max]: | 100 |
| Suitable for glycol (EF002310): | TRUE |
| High Clipping Level: | 92.00 |
| Degree of protection (IP) (EF005474): | IP69K |
| Overload pressure max. [bar]: | 64.0 |
| Output signal (EF000506): | Other |
| Overload pressure max. [psi]: | 928 |
| Suitable for oil (EF021672): | TRUE |
| Suitable for ammonia (EF021671): | TRUE |
| Response time max. [ms]: | 2 |
| Supply voltage [V] DC: | 5.00 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 60 |
| Compensated temp. range [°C] [min]: | -40 |
| Explosion-proof (EF004663): | FALSE |
-
