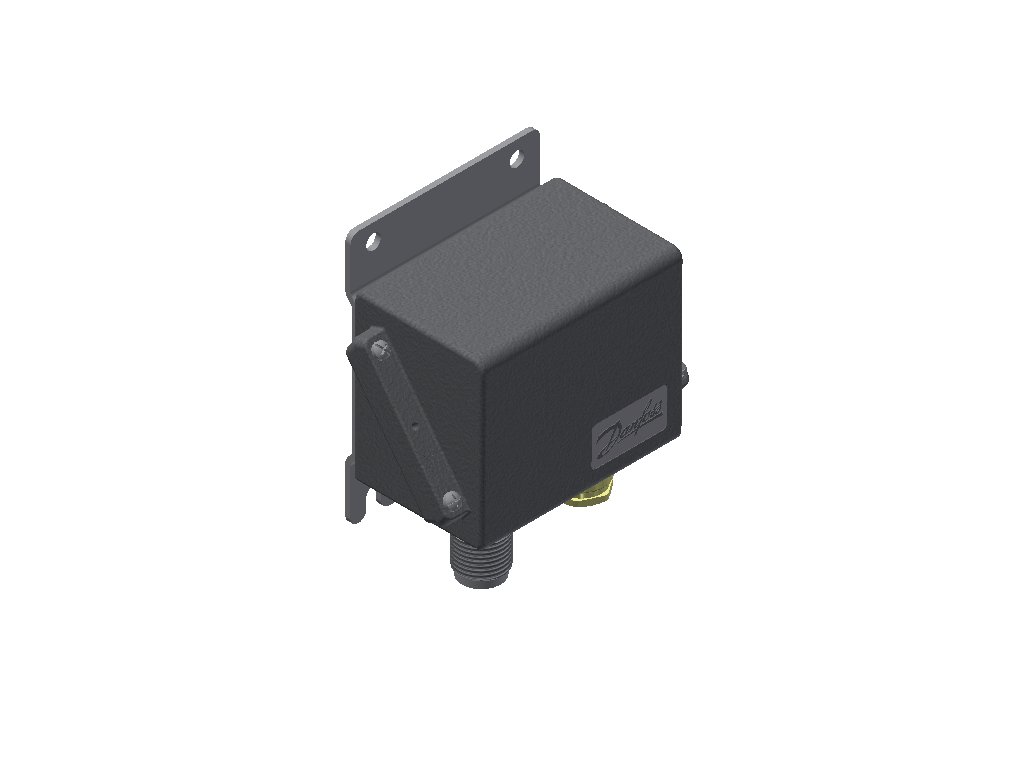

Tlakový snímač s vysílačem, EMP 2, -1 bar - 6 bar, -14.5 psi - 87 psi
Kód: 084G2185Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EMP 2 |
|---|---|
| Hmotnost: | 0.98 kg |
| EAN: | 5702423221929 |
| Medium temperature range [°C] [max]: | 70 |
| Readable (EF024476): | FALSE |
| Cable length (EF000536): | 0 |
| Electrical connection size: | Pg 13.5 |
| UL mark: | Yes |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Flush diaphragm: | No |
| Specification key: | EMP 2-D531-F6CD24-2 |
| Height (EF000040): | 95 |
| SCIP dossier no.: | 6010d1e2-f473-4af2-afdd-bb494bdd0100 |
| Compensated temp. range [°F] [max]: | 158 |
| Electrical connection (EF003701): | Other |
| Pressure connection size: | 1/2 |
| Pressure connection standard: | EN 228-1 |
| Width (EF000008): | 135 |
| Measuring element (EF021417): | Piezo |
| Medium temperature range [°C] [min]: | -10 |
| Accuracy, typical [±FS%]: | 0.5 |
| Electrical connection: | Terminal block |
| Output signal: | Current |
| Suitable for gases (EF007249): | TRUE |
| Pressure connection notes: | EXT. G1/4 INT |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Sealed gauge |
| Accuracy, max. [±FS%]: | 1.00 |
| Compensated temp. range [°C] [max]: | 70 |
| Suitable for air (EF021466): | TRUE |
| Max. overpressure (EF022533): | 12.0 |
| Pressure Male/Female: | Male/Female |
| Suitable for water (EF020334): | TRUE |
| Non-linearity BFSL [±FS%]: | 0.30 |
| Measuring range (EF001836): | -1.00-6.00 |
| Depth (EF000049): | 190 |
| Output signal [mA] [min]: | 4 |
| Medium temperature range [°F] [min]: | 14 |
| International Article Number: | 5702423221929 |
| - common: | N |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/2 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 6.00 |
| Packing format: | Multi pack |
| Approval: | ABS, BV, CCS, CE, DNV, GL, GOST POCC, KR, LR, NNK, RINA |
| With temperature sensor (EF006034): | TRUE |
| Pressure range [psi] [max]: | 87.00 |
| Feed pressure (EF020276): | 6.00 |
| Flange compression class (EF020149): | Other |
| Suitable for steam (EF020335): | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Contains batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | P |
| With display (EF000458): | FALSE |
| CE mark: | Yes |
| EU RoHS exemption clause: | 7(c)-I |
| EU RoHS compliance: | Yes with exemptions |
| Medium temperature range [°F] [max]: | 158 |
| Intrinsically safe: | No |
| Pulse-snubber: | No |
| Pressure range [bar] [min]: | -1.00 |
| Low Clipping level: | 3.60 |
| Supply voltage (EF000104): | 32.00 |
| Suitable for glycol (EF002310): | TRUE |
| High Clipping Level: | 22.40 |
| Degree of protection (IP) (EF005474): | IP67 |
| Overload pressure max. [bar]: | 12.0 |
| SCIP dossier product name: | EMP |
| Output signal (EF000506): | 4 - 20 mA |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil (EF021672): | TRUE |
| Suitable for ammonia (EF021671): | TRUE |
| Response time max. [ms]: | 4 |
| Pressure range [psi] [min]: | -14.50 |
| Quantity per packing format: | 8 |
| Supply voltage [V] DC [min]: | 12.00 |
| Compensated temp. range [°C] [min]: | 0 |
| Explosion-proof (EF004663): | FALSE |
| Compensated temp. range [°F] [min]: | 32 |
-
