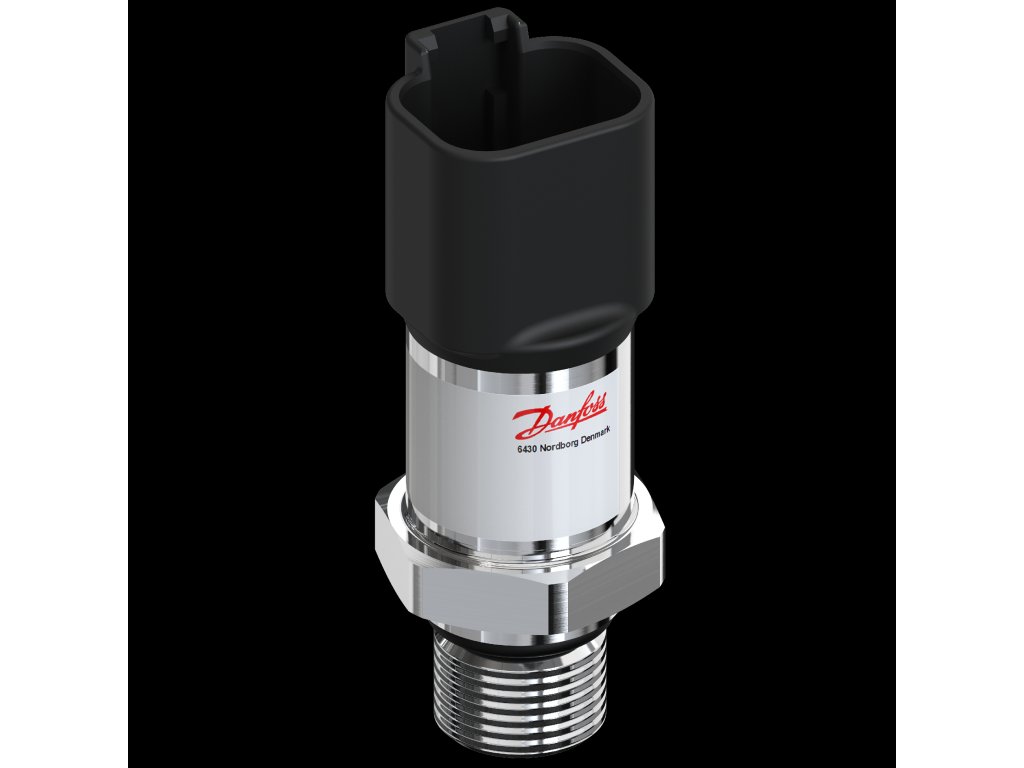

Tlakový snímač s vysílačem, MBS 1350, 0 bar - 250 bar, 0 psi - 3625 psi
Kód: 063G1473Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBS 1300 / MBS 1350 |
|---|---|
| Hmotnost: | 0.07 kg |
| EAN: | 5702423275908 |
| Overload pressure max. [psig]: | 10800 |
| Burst pressure [bar]: | 2500.0 |
| Burst pressure [psig]: | 36250 |
| Medium temperature range [°C] [max]: | 125 |
| Ambient temperature range [°F] [min]: | -40 |
| Readable (EF024476): | FALSE |
| Cable length (EF000536): | 0 |
| Electrical connection size: | 4 pin |
| UL mark: | Yes |
| Connection (EF000443): | External thread flare (UNF) |
| Specification key: | MBS 1350-341C-C3BD11-1 |
| Height (EF000040): | 31 |
| Compensated temp. range [°F] [max]: | 257 |
| Electrical connection (EF003701): | Other |
| Pressure connection size: | 9/16-18 |
| Pressure connection standard: | SAE J1926/2 |
| Width (EF000008): | 31 |
| Measuring element (EF021417): | Piezo |
| Medium temperature range [°C] [min]: | -40 |
| Accuracy, typical [±FS%]: | 0.5 |
| Electrical connection: | Deutsch |
| Output signal: | Voltage |
| Suitable for gases (EF007249): | TRUE |
| Enclosure rating IP: | IP67 |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -40 |
| Compensated temp. range [°C] [max]: | 125 |
| Suitable for air (EF021466): | TRUE |
| Max. overpressure (EF022533): | 750.0 |
| Pressure connection HEX [mm]: | 22.0 |
| Pressure Male/Female: | Male |
| Suitable for water (EF020334): | TRUE |
| Measuring range (EF001836): | 0.00-250.00 |
| Depth (EF000049): | 95 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Medium temperature range [°F] [min]: | -40 |
| - common: | Pin 1 |
| Pressure connection type: | UNF |
| Thread size (EF022694): | Other |
| + output: | Pin 4 |
| China RoHS compliance: | Out of scope |
| Output signal [V] [min]: | 0.5000 |
| Pressure range [bar] [max]: | 250.00 |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized, CE |
| With temperature sensor (EF006034): | TRUE |
| Pressure range [psi] [max]: | 3625.00 |
| Feed pressure (EF020276): | 250.00 |
| Flange compression class (EF020149): | Other |
| Electrical conn. Male/Female: | Male |
| Suitable for steam (EF020335): | TRUE |
| REACH Candidate List substances: | No |
| Electrical connection standard: | DT04 |
| Contains batteries: | No |
| + supply: | Pin 2 |
| With display (EF000458): | FALSE |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Medium temperature range [°F] [max]: | 257 |
| Pin surface material: | Au |
| Pulse-snubber: | Yes |
| Pressure range [bar] [min]: | 0.00 |
| Ambient temperature range [°C] [max]: | 125 |
| Supply voltage (EF000104): | 30.00 |
| Suitable for glycol (EF002310): | TRUE |
| Degree of protection (IP) (EF005474): | IP67 |
| Overload pressure max. [bar]: | 750.0 |
| Comments: | SWITCH:VSUPPLY AT 155BAR PIN 3 |
| Output signal (EF000506): | Other |
| Supply voltage [V] DC [max]: | 30.00 |
| Suitable for oil (EF021672): | TRUE |
| Suitable for ammonia (EF021671): | TRUE |
| Response time max. [ms]: | 1 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 48 |
| Supply voltage [V] DC [min]: | 8.00 |
| Ambient temperature range [°F] [max]: | 257 |
| Compensated temp. range [°C] [min]: | -40 |
| Output signal [V] [max]: | 4.5000 |
| Explosion-proof (EF004663): | FALSE |
| Compensated temp. range [°F] [min]: | -40 |
