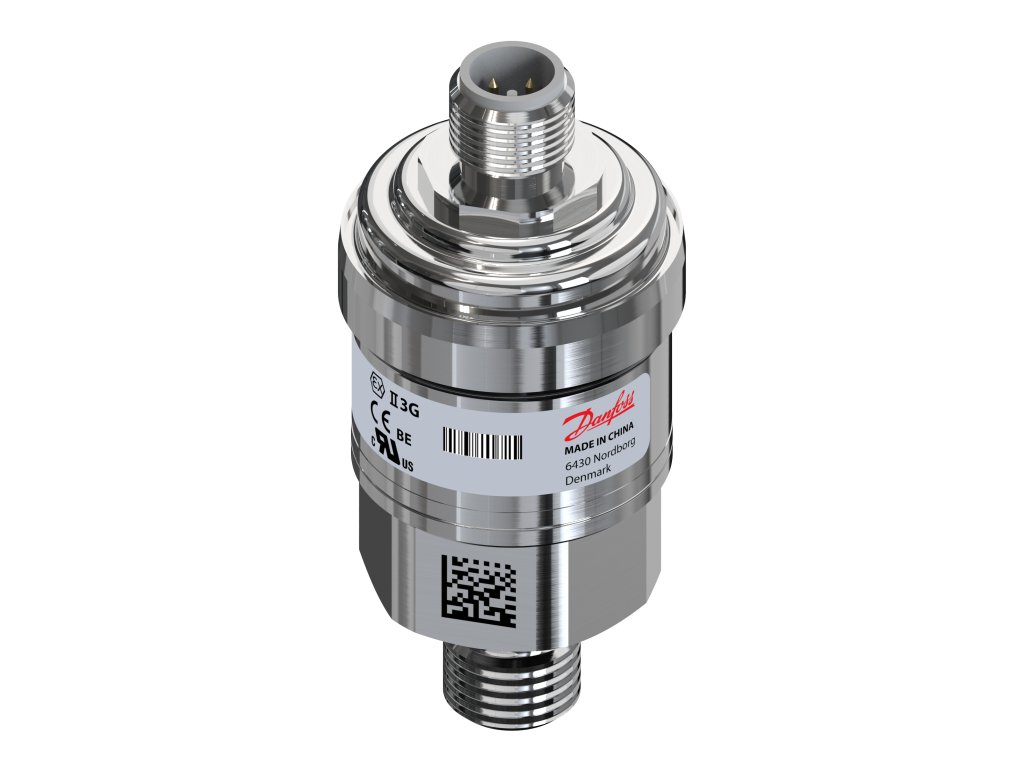

Tlakový snímač s vysílačem, MBS 3250, 0 bar - 250 bar, 0 psi - 3625 psi
Kód: 060G7534Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBS 3200 / MBS 3250 |
|---|---|
| Hmotnost: | 0.14 kg |
| EAN: | 5702424536800 |
| Medium temperature range [°C] [max]: | 125 |
| Ambient temperature range [°F] [min]: | -13 |
| Readable (EF024476): | FALSE |
| Cable length (EF000536): | 0 |
| Electrical connection size: | 4 pin |
| UL mark: | Yes |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Flush diaphragm: | No |
| Specification key: | MBS 3250-343B-E3GB04-1 |
| Height (EF000040): | 55 |
| SCIP dossier no.: | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Compensated temp. range [°F] [max]: | 212 |
| Electrical connection (EF003701): | Other |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | DIN 3852-E, ISO 1179-2 (Form E) |
| Width (EF000008): | 55 |
| Measuring element (EF021417): | Piezo |
| Medium temperature range [°C] [min]: | -40 |
| Accuracy, typical [±FS%]: | 0.5 |
| Electrical connection: | M12 x 1 |
| Output signal: | Voltage |
| Suitable for gases (EF007249): | TRUE |
| Enclosure rating IP: | IP67 |
| Pressure reference: | Sealed gauge |
| Ambient temperature range [°C] [min]: | -25 |
| Accuracy, max. [±FS%]: | 1.00 |
| Compensated temp. range [°C] [max]: | 100 |
| Suitable for air (EF021466): | TRUE |
| Max. overpressure (EF022533): | 1500.0 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Male |
| Suitable for water (EF020334): | TRUE |
| Non-linearity BFSL [±FS%]: | 0.20 |
| Measuring range (EF001836): | 0.00-250.00 |
| Depth (EF000049): | 55 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Medium temperature range [°F] [min]: | -40 |
| International Article Number: | 5702424536800 |
| - common: | Pin 3 |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/4 inch |
| + output: | Pin 2 |
| Autofrettage Pressure: | 1600 |
| China RoHS compliance: | Out of scope |
| Output signal [V] [min]: | 0.1000 |
| Pressure range [bar] [max]: | 250.00 |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized, CE |
| With temperature sensor (EF006034): | TRUE |
| Pressure range [psi] [max]: | 3625.00 |
| Feed pressure (EF020276): | 250.00 |
| Flange compression class (EF020149): | Other |
| Electrical conn. Male/Female: | Male |
| Suitable for steam (EF020335): | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | IEC 61076-2-101 |
| Contains batteries: | No |
| + supply: | Pin 1 |
| With display (EF000458): | FALSE |
| CE mark: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Medium temperature range [°F] [max]: | 257 |
| Intrinsically safe: | No |
| Pulse-snubber: | Yes |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 0.00 |
| Ambient temperature range [°C] [max]: | 90 |
| Supply voltage (EF000104): | 32.00 |
| Suitable for glycol (EF002310): | TRUE |
| High Clipping Level: | 11.50 |
| Degree of protection (IP) (EF005474): | IP67 |
| Overload pressure max. [bar]: | 1500.0 |
| SCIP dossier product name: | AKS/MBS |
| Output signal (EF000506): | Other |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil (EF021672): | TRUE |
| Suitable for ammonia (EF021671): | TRUE |
| Adj. zero point and span: | No |
| Response time max. [ms]: | 4 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 20 |
| Supply voltage [V] DC [min]: | 15.00 |
| Ambient temperature range [°F] [max]: | 194 |
| Compensated temp. range [°C] [min]: | 0 |
| Output signal [V] [max]: | 10.1000 |
| Explosion-proof (EF004663): | FALSE |
| Compensated temp. range [°F] [min]: | 32 |
-
