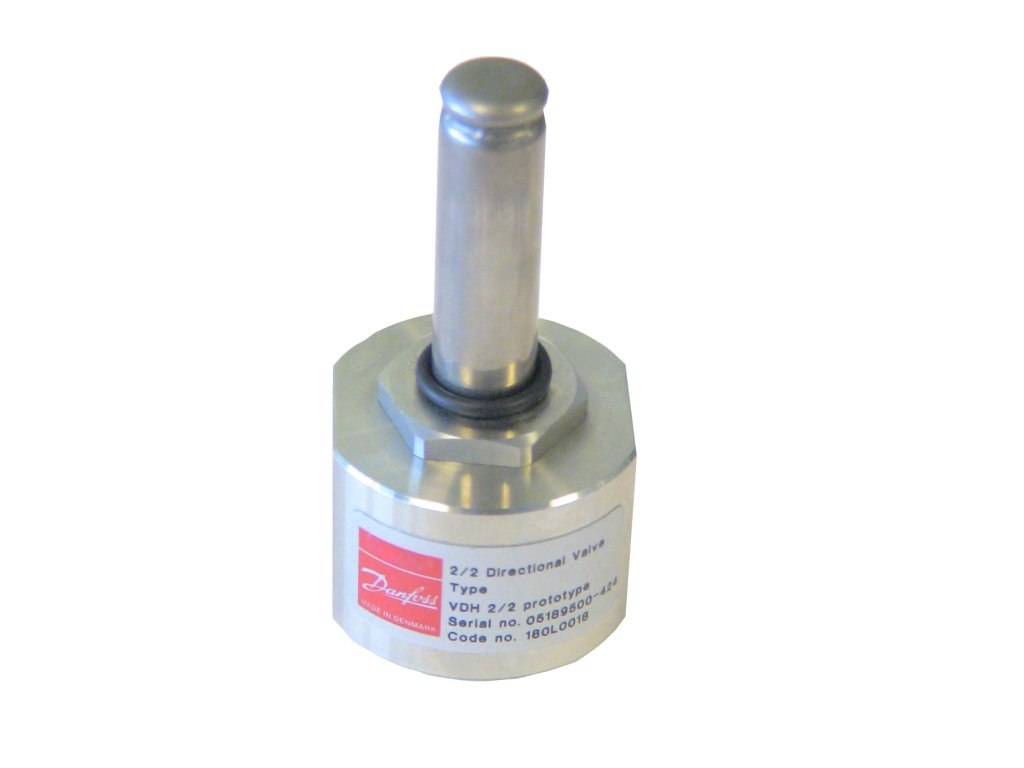

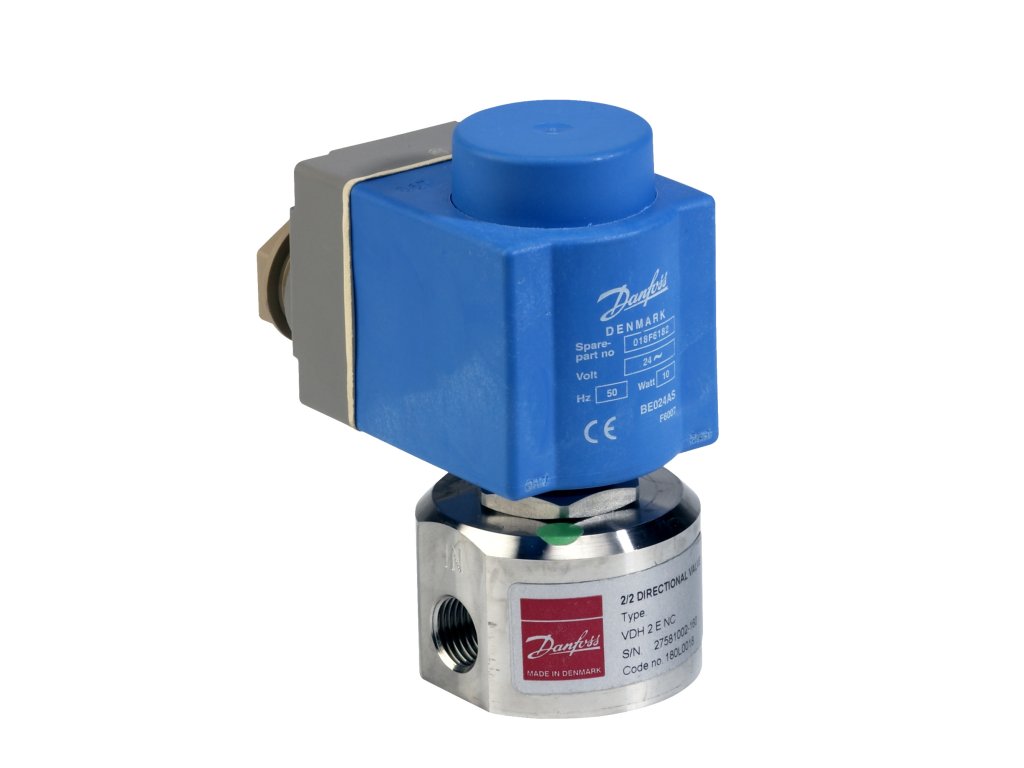

Solenoid operated valves, VDH 2 E NO, Hydraulic
Kód: 180L0019Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VDHT BSP |
|---|---|
| Hmotnost: | 0.5 kg |
| EAN: | 5715162676325 |
| Media temperature [°C] [Min]: | 2 |
| Flow [gpm] [Min]: | 0.000 |
| Closing Time [ms] [Max]: | 200 |
| Closing Time [ms] [Min]: | 100 |
| Type of accessory/spare part (EF000215): | Other |
| Outlet connection size [in]: | 1/4 in |
| Actuator size [mm]: | 13.5 |
| Product description: | Solenoid operated valves |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 194 |
| Media temperature [°F] [Min]: | 36 |
| Height (EF000040): | 68 |
| Type designation: | VDH 2 E NO |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 1/4 in |
| Number of ways: | 2/2 |
| Opening time [ms] [Max]: | 200 |
| Function: | NO |
| Contains batteries: | No |
| Opening time [ms] [Min]: | 100 |
| Width (EF000008): | 68 |
| Operating pressure [barg] [Max]: | 90 |
| Flow [l/min] [Max]: | 2.00 |
| EU RoHS exemption clause: | No |
| Operating pressure [barg] [Min]: | 0 |
| EU RoHS compliance: | Yes |
| Flow [l/min] [Min]: | 0.00 |
| Operating pressure [psig] [Max]: | 1300 |
| Media temperature [°C] [Max]: | 90 |
| Flow [gpm] [Max]: | 0.500 |
| Operating pressure [psig] [Min]: | 0 |
| Spare part (EF013237): | TRUE |
| Serviceable: | Yes |
| Seal Material: | FKM |
| Operation: | Direct |
| Material type: | Neutral media |
| Accessory (EF013236): | TRUE |
| Connection type: | Thread |
| Direction: | Straightway |
| Parts Program name: | VDH |
| Body material: | AISI 304 |
| Application: | Hydraulic |
-
