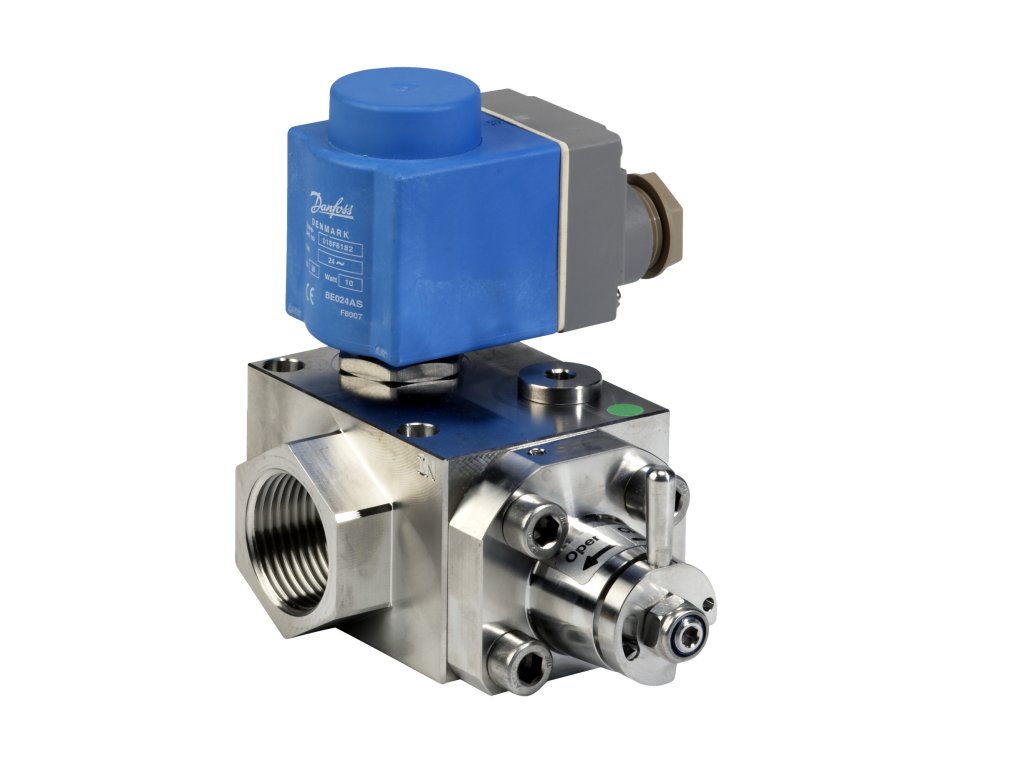

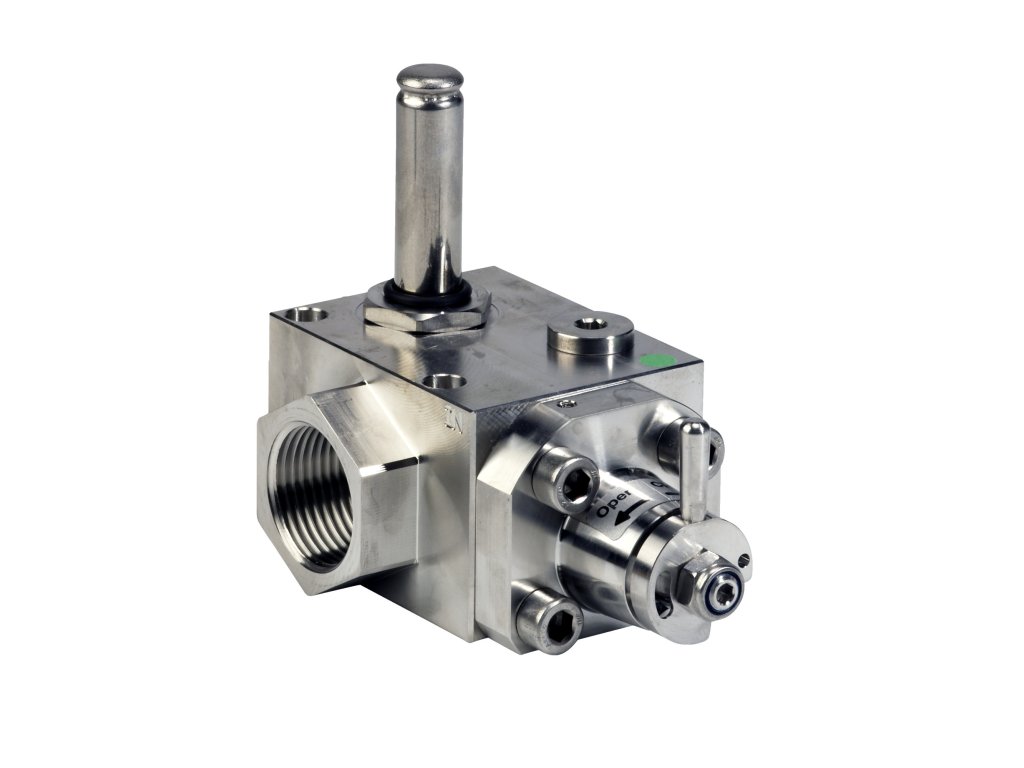

Solenoid operated valves, VDHT 3/4 EAM NC, Industrial

Kód: 180L0122

Neohodnoceno

35 873 Kč 29 647 Kč bez DPH

Momentálně nedostupné

Popis produktu není dostupný

Kategorie:	VDHT BSP
Hmotnost:	2.1 kg
EAN:	5715162671368
Media temperature [°C] [Min]:	2
Flow [gpm] [Min]:	0.000
Type of accessory/spare part (EF000215):	Other
Outlet connection size [in]:	3/4 in
Actuator size [mm]:	13.5
Product description:	Solenoid operated valves
Connection standard:	BSP
China RoHS compliance:	Out of scope
In scope of WEEE:	No
Media temperature [°F] [Max]:	194
Media temperature [°F] [Min]:	36
Height (EF000040):	138
Type designation:	VDHT 3/4 EAM NC
REACH Candidate List substances:	No
Piston diameter Ø [mm]:	35
Inlet connection size [in]:	3/4 in
Number of ways:	2/2
Function:	NC
Contains batteries:	No
Width (EF000008):	138
Operating pressure [barg] [Max]:	140
Flow [l/min] [Max]:	120.00
EU RoHS exemption clause:	No
Operating pressure [barg] [Min]:	4
EU RoHS compliance:	Yes
Flow [l/min] [Min]:	0.00
Operating pressure [psig] [Max]:	2030
Media temperature [°C] [Max]:	90
Flow [gpm] [Max]:	32.000
Operating pressure [psig] [Min]:	51
Spare part (EF013237):	TRUE
Serviceable:	Yes
Seal Material:	FKM
Operation:	Pilot operated
Material type:	Neutral media
Accessory (EF013236):	TRUE
Connection type:	Thread
Direction:	Angleway
Parts Program name:	VDHT
Body material:	AISI 304
Application:	Industrial
