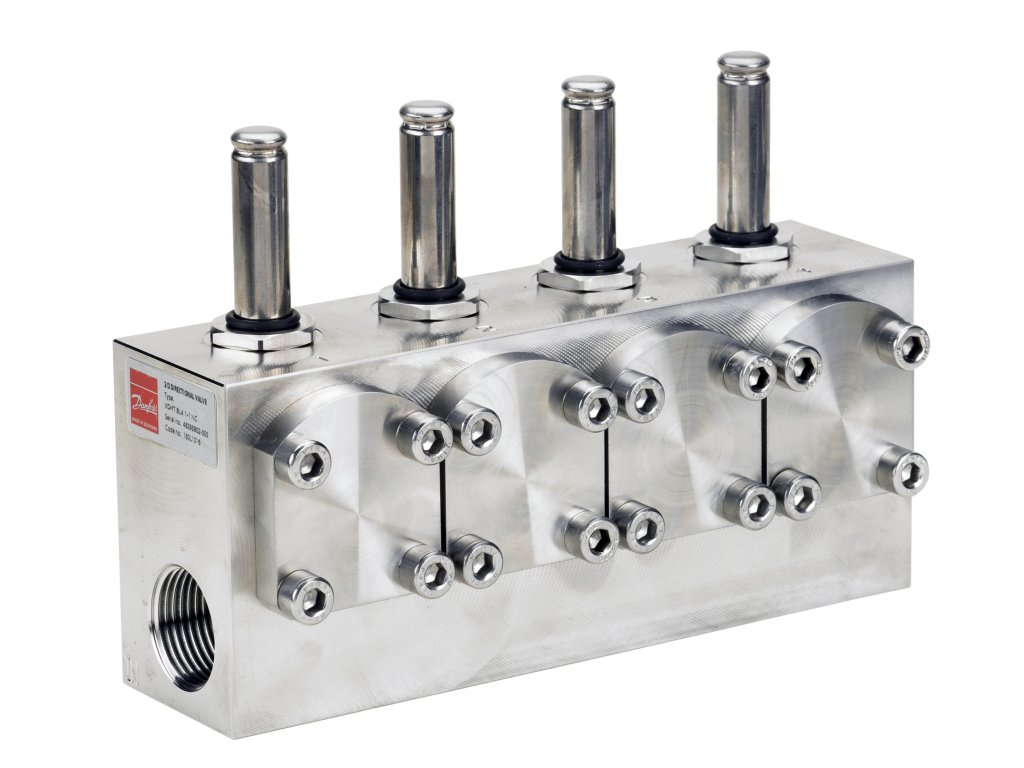

Solenoid operated valves, VDHT BL2 3/4-3/4 NC-NO, Industrial
Kód: 180L1024Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VDHT BSP |
|---|---|
| Hmotnost: | 4.4 kg |
| EAN: | 5715162675038 |
| Type of accessory/spare part (EF000215): | Other |
| Outlet connection size [in]: | 3/4 |
| Product description: | Solenoid operated valves |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| UL mark: | Yes |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 194 |
| Approval: | UL |
| Height (EF000040): | 190 |
| Type designation: | VDHT BL2 3/4-3/4 NC-NO |
| REACH Candidate List substances: | No |
| Piston diameter Ø [mm]: | 35 |
| Inlet connection size [in]: | 3/4 |
| Function: | 1 NO+1 NC |
| Contains batteries: | No |
| Width (EF000008): | 190 |
| Operating pressure [barg] [Max]: | 140 |
| Flow [l/min] [Max]: | 120.00 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Operating pressure [psig] [Max]: | 2030 |
| Media temperature [°C] [Max]: | 90 |
| Flow [gpm] [Max]: | 32.000 |
| Spare part (EF013237): | TRUE |
| Accessory (EF013236): | TRUE |
| Direction: | Manifold |
| Application: | Industrial |
-
