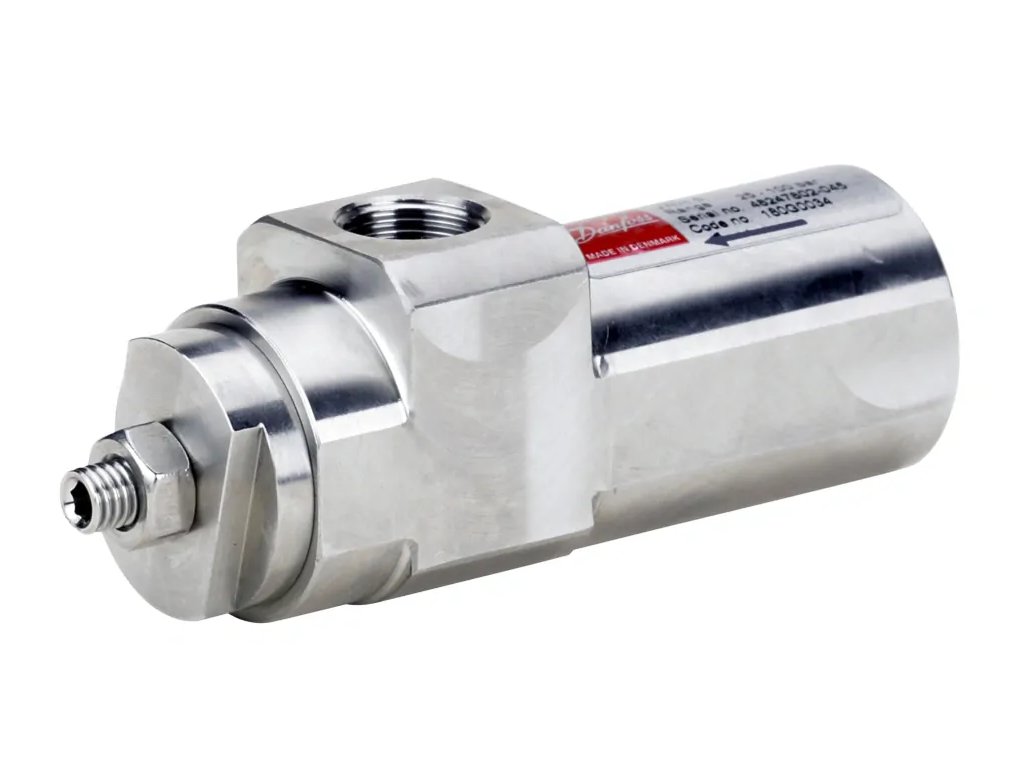

VRH 5 30-120 bar
Kód: 180G0034Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Průmyslová voda |
|---|---|
| Hmotnost: | 0.59 kg |
| EAN: | 5715162671849 |
| Type of accessory/spare part (EF000215): | Other |
| Outlet connection size [in]: | 3/8 in |
| Product description: | Pressure operated valves |
| Connection standard: | BSP |
| China RoHS exemption clause: | No |
| China RoHS compliance: | Yes |
| UL mark: | No |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 122 |
| Height (EF000040): | 92 |
| Type designation: | VRH 5 30-120 bar |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 3/8 in |
| Contains batteries: | No |
| Width (EF000008): | 92 |
| CE mark: | No |
| Operating pressure [barg] [Max]: | 100 |
| Flow [l/min] [Max]: | 5.00 |
| EU RoHS exemption clause: | No |
| Operating pressure [barg] [Min]: | 25 |
| EU RoHS compliance: | Yes |
| Operating pressure [psig] [Max]: | 1450 |
| Media temperature [°C] [Max]: | 50 |
| Flow [gpm] [Max]: | 1.300 |
| Operating pressure [psig] [Min]: | 362 |
| Spare part (EF013237): | TRUE |
| Accessory (EF013236): | TRUE |
| Body material: | AISI 304 |
-
Pressure relief valve VRH 5 - 120 (F) Disassembling and assembling: Servisní příručka
-
Pressure relief valve, type VRH 5, VRH 30, VRH 60 and VRH 120: Datový list
-
VRH 5, 30, 60, 120 and 120F Relief Valve: Instalační příručka
-
Pressure relief valve VRH 5 CA and VRH 30 cartridge vers1ion: Instalační příručka
