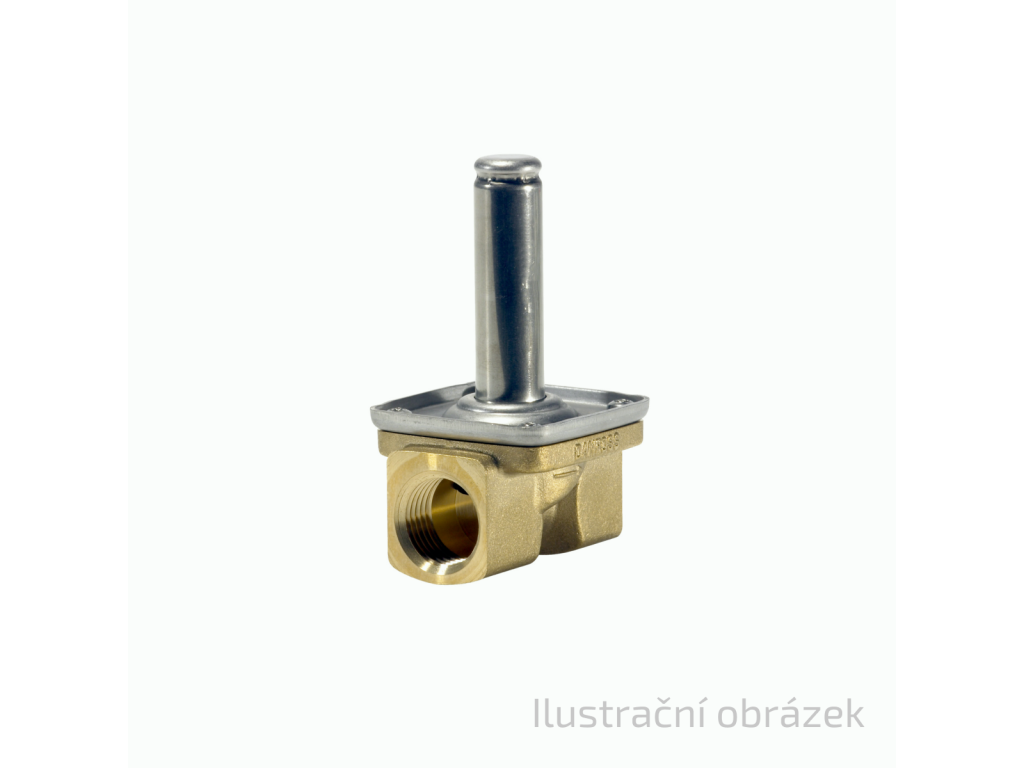

Elektromagnetický ventil, EV210B, Funkce: NC, G, 1/4, 0.15 m³/h, EPDM
Kód: 032U3651Související produkty
![Cívka solenoidu, BE230AS, Svorkovnice, Napájecí napětí [V] AC: 220 - 230, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4548_civka-solenoidu--be230as--svorkovnice--napajeci-napeti--v--ac--220-230--multi-baleni.jpg?67e88fe6
)
![Cívka solenoidu, BE024AS, Svorkovnice, Napájecí napětí [V] AC: 24, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4551_civka-solenoidu--be024as--svorkovnice--napajeci-napeti--v--ac--24--multi-baleni.jpg?67e88fe6
)
![Cívka solenoidu, BB230AS, Štítek DIN, Napájecí napětí [V] AC: 230, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4533_civka-solenoidu--bb230as--stitek-din--napajeci-napeti--v--ac--230--multi-baleni.png?67e88fe6
)
![Cívka solenoidu, BB024AS, Štítek DIN, Napájecí napětí [V] AC: 24, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4536_civka-solenoidu--bb024as--stitek-din--napajeci-napeti--v--ac--24--multi-baleni.png?67e88fe6
)
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV210B |
|---|---|
| Hmotnost: | 0.26 kg |
| EAN: | 5702423180035 |
| Housing material (EF001596): | Stainless steel |
| Medium temperature range [°C] [max]: | 120 |
| Min. pressure difference (EF020189): | 0.000 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 20 |
| China RoHS exemption clause: | No |
| Est. time to open, water [ms]: | 20 |
| Kvs value (EF022466): | 0.150 |
| Specification key: | EV210B 2SS G 14E NC000 |
| Height (EF000040): | 96 |
| Actuator system [mm]: | 13.5 |
| Material quality (EF001257): | Other |
| Function: | NC |
| Max. test pressure [psig]: | 653.0 |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Media tolerance comments: | 140 °C/3.6 bar low press steam, Aggressive media |
| Operation: | Direct-operated |
| Product accessories: | Solenoid valve accessories |
| Connection type: | G |
| Connection size [in]: | 1/4 |
| Connection material: | Stainless steel |
| Parts Program name: | EV210B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Stainless steel |
| Differential pressure [psi] [min]: | 0.000 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 2.00 |
| Medium temperature range [°F] [min]: | -22 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 0.170 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 0.150 |
| Differential pressure [bar] [min]: | 0.000 |
| Actuator: | B |
| Type designation: | EV210B 2 |
| REACH Candidate List substances: | No |
| Differential pressure [bar] [max]: | 30.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 30.0 |
| Medium temperature range [°F] [max]: | 248 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 5/64 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Max. viscosity (EF025190): | 50 |
| Differential pressure [psi] [max]: | 435.000 |
| Application: | Closed and Drain |
| Max media viscosity [cSt]: | 50 |
| Max. test pressure [bar]: | 45.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 20 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 435 |
| Media recommendations: | Water & Brine |
-
