Cívka solenoidu, BB024DS, Štítek DIN, null: 24, Multi balení (018F7397)
Kód: 018F7397Související produkty
Detailní popis produktu

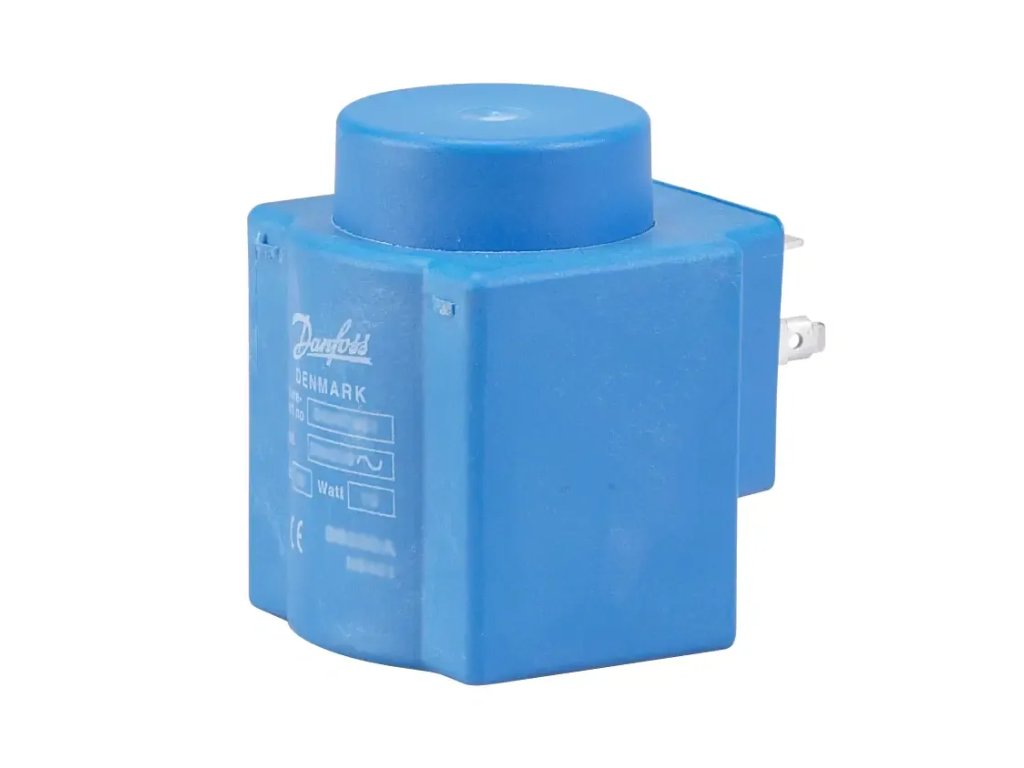

Cívka solenoidu Danfoss BB024DS je originální náhradní díl pro elektromagnetické ventily, zajišťující elektromagnetické ovládání ventilu při přivedení napájecího napětí.
- Elektrické připojení: DIN Spade (EN175301-803)
- Krytí: IP00
- Třída izolace vinutí: Class H to IEC 85
- Kompatibilní s ventily: EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV250B, EV251B, EV310B
- Schválení: CE, EAC, LLC CDC TYSK, cURus
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.27 kg |
| EAN: | 5702428044547 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | DIN Spade |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Spare part number: | 018F7397 |
| UL mark: | Yes |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 97 |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Class H to IEC 85 |
| Electrical connection: | DIN Spade |
| Serviceable: | No |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Power consumption [W] DC: | 16.0 |
| Electrical connector: | 3 x spades |
| Product accessories: | Solenoid coil accessories |
| Parts Program name: | EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV250B, EV251B, EV310B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Compliance: | EN 60730-1, UL 429 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CE, EAC, LLC CDC TYSK, cURus |
| Type designation: | BB024DS |
| REACH Candidate List substances: | No |
| Electrical connection standard: | EN175301-803 |
| Duty rating: | Continuous |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Coil design standard: | VDE 0580 |
| Spare part (EF013237): | TRUE |
| Rel. Humidity conditions: | Non-condensation |
| Ambient temperature range [°C] [max]: | 50 |
| Accessory (EF013236): | TRUE |
| UL approval file name: | MH29671 |
| SCIP dossier product name: | Solenoid coils |
| Supply voltage [V] DC: | 24.00 |
| Quantity per packing format: | 50 |
| Ambient temperature range [°F] [max]: | 122 |
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
EPD for Solenoid valve EV250BW 10-22 (made from ECO brass): Informace o životním prostředí produktu
-
Solenoid coil Types BB, BE, BF, BG, and BN: Instalační příručka
-
Solenoid coil Type BB, BG, BQ, BT, BU, BY and BN: Instalační příručka
-
Solenoid coil type BB, BE, BF, BG, and BN: Datový list
