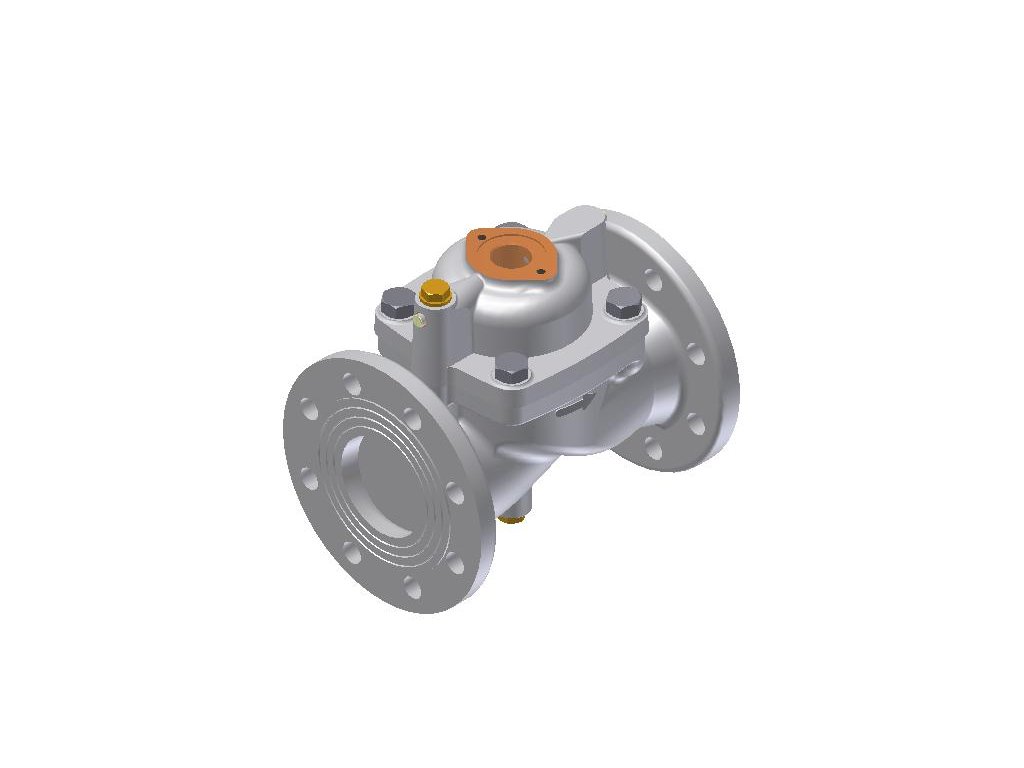

Elektromagnetický ventil, EV220B, Funkce: NC, Příruba, 75 m³/h, NBR
Kód: 016D3331Související produkty
![Cívka solenoidu, BE230AS, Svorkovnice, Napájecí napětí [V] AC: 220 - 230, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4548_civka-solenoidu--be230as--svorkovnice--napajeci-napeti--v--ac--220-230--multi-baleni.jpg?67e88fe6
)
![Cívka solenoidu, BE024AS, Svorkovnice, Napájecí napětí [V] AC: 24, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4551_civka-solenoidu--be024as--svorkovnice--napajeci-napeti--v--ac--24--multi-baleni.jpg?67e88fe6
)
![Cívka solenoidu, BB230AS, Štítek DIN, Napájecí napětí [V] AC: 230, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4533_civka-solenoidu--bb230as--stitek-din--napajeci-napeti--v--ac--230--multi-baleni.png?67e88fe6
)
![Cívka solenoidu, BB024AS, Štítek DIN, Napájecí napětí [V] AC: 24, Multi balení](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4536_civka-solenoidu--bb024as--stitek-din--napajeci-napeti--v--ac--24--multi-baleni.png?67e88fe6
)
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220B |
|---|---|
| Hmotnost: | 25.18 kg |
| EAN: | 5702422130734 |
| Medium temperature range [°C] [max]: | 90 |
| Connection standard: | EN 1092-1 |
| Est. time to close, water [ms]: | 15000 |
| China RoHS exemption clause: | 7.3 |
| Est. time to open, water [ms]: | 5000 |
| Specification key: | EV220B 80CI FL10 N NC000 |
| SCIP dossier no.: | ca3467a2-054f-4e8c-b2c1-112e44e3f676 |
| Actuator system [mm]: | 13.5 |
| Function: | NC |
| Max. test pressure [psig]: | 218.0 |
| Medium temperature range [°C] [min]: | -25 |
| Ambient temperature max. [°C]: | 80 |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | NBR |
| Ambient temperature max. [°F]: | 176 |
| Media tolerance comments: | Neutral media |
| Operation: | Servo-operated (piston) |
| Product accessories: | Flanges, Solenoid valve accessories |
| Connection type: | Flange |
| Connection size [in]: | 3 in |
| Connection material: | Cast iron |
| Parts Program name: | EV220B 65 - 100 |
| Body material: | Cast iron |
| Differential pressure [psi] [min]: | 3.600 |
| Orifice size [mm]: | 80.00 |
| Open/close equalizing orifice: | Optional Equalization orifice |
| Medium temperature range [°F] [min]: | -13 |
| Fluid Group: | 2 |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 87.000 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Single pack |
| Kv value [m³/h]: | 75.000 |
| Differential pressure [bar] [min]: | 0.250 |
| Actuator: | B |
| Type designation: | EV220B 80 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 194 |
| Spare part (EF013237): | TRUE |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 3 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Open |
| Accessory (EF013236): | TRUE |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV220B 65-100 |
| Max. test pressure [bar]: | 15.0 |
| Quantity per packing format: | 1 |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water,Brine,Oil,Air |
-
