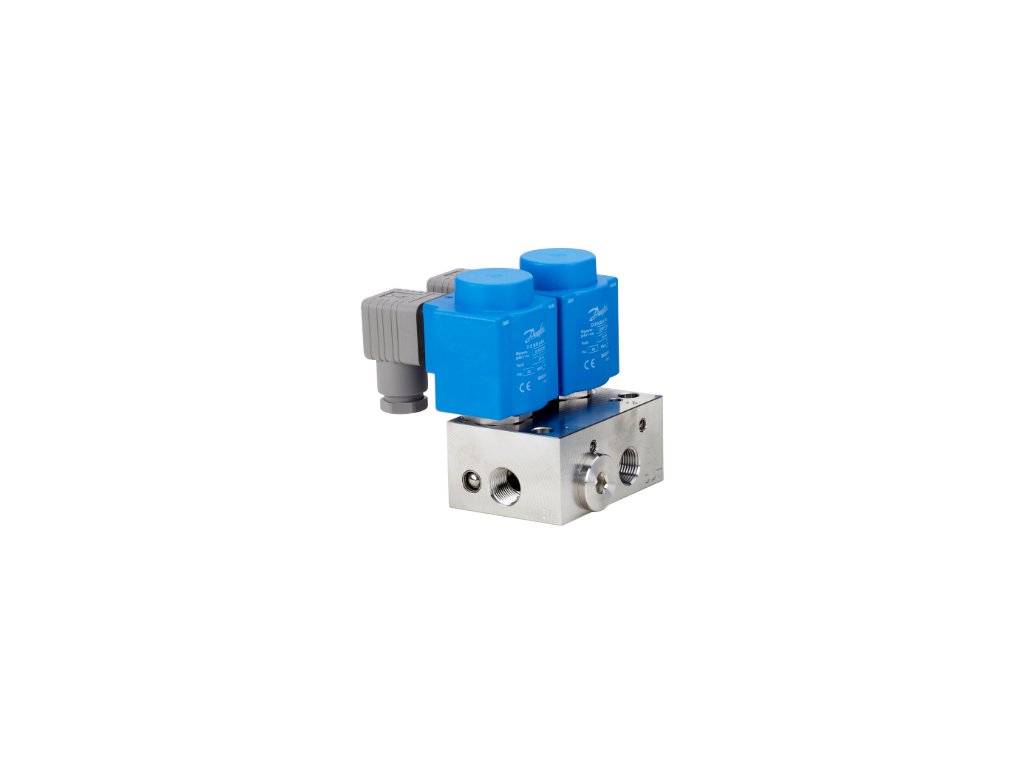

Solenoid operated valves, VDHT 15 E NC-NO, Industrial
Kód: 180L0233Související produkty
Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VDHT 3/2 |
|---|---|
| Hmotnost: | 1.54 kg |
| EAN: | 5715162673164 |
| Flow [gpm] [Min]: | 0.260 |
| Type of accessory/spare part (EF000215): | Other |
| Outlet connection size [in]: | 3/8 in |
| Product description: | Solenoid operated valves |
| Connection standard: | NPT |
| China RoHS compliance: | Out of scope |
| In scope of WEEE: | No |
| Height (EF000040): | 128 |
| Type designation: | VDHT 15 E NC-NO |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 3/8 |
| Function: | 1 NO+1 NC |
| Contains batteries: | No |
| Outlet size [in]: | 3/8 in |
| Width (EF000008): | 128 |
| Operating pressure [barg] [Max]: | 160 |
| Flow [l/min] [Max]: | 15.00 |
| EU RoHS exemption clause: | No |
| Operating pressure [barg] [Min]: | 9 |
| EU RoHS compliance: | Yes |
| Flow [l/min] [Min]: | 1.00 |
| Operating pressure [psig] [Max]: | 2300 |
| Flow [gpm] [Max]: | 4.000 |
| Operating pressure [psig] [Min]: | 29 |
| Spare part (EF013237): | TRUE |
| Inlet size [in]: | 3/8 in |
| Accessory (EF013236): | TRUE |
| Direction: | Manifold |
| Application: | Industrial |
-
3-2_way Zone Drain valves VDHT 2E_15E-15EC: Datový list
-
Directional valve - CETOP 3 VDHT 15 EC 3/2" Soft charge: Instalační příručka
