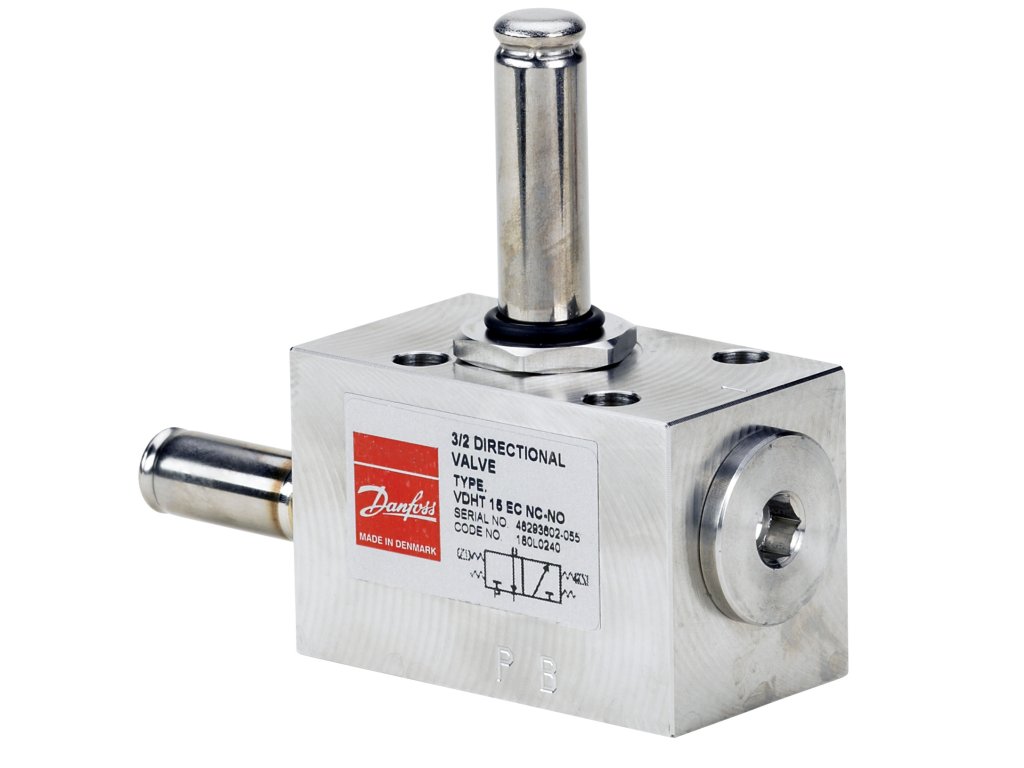

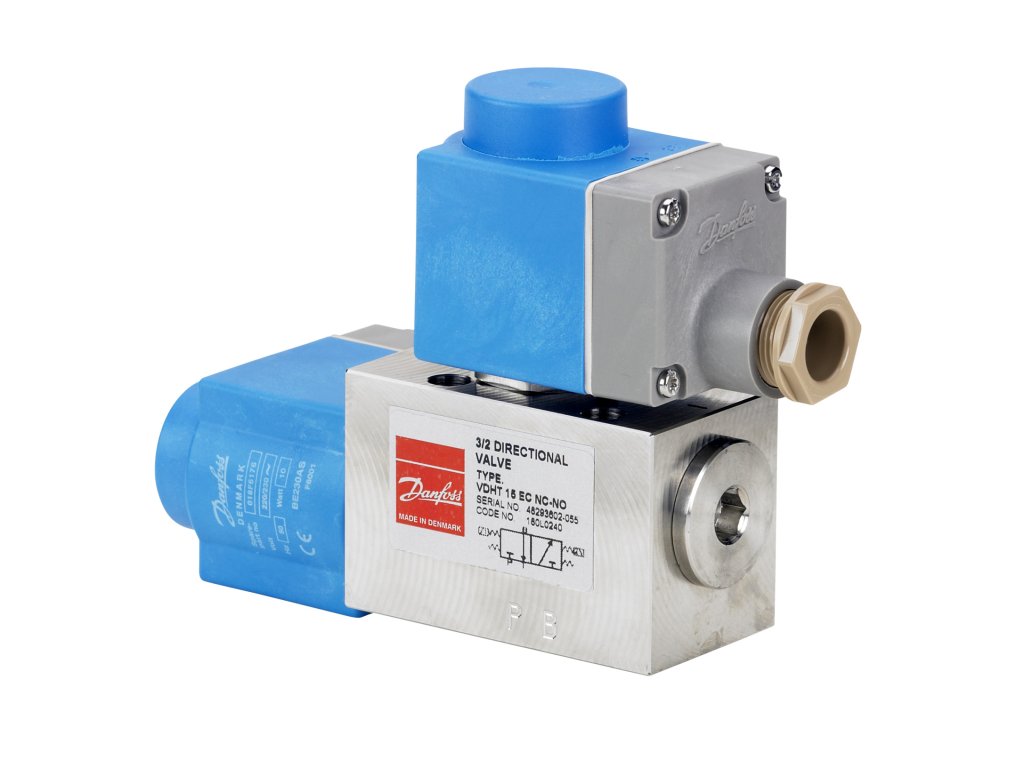

Solenoid operated valves, VDHT 15 EC NC-NO, Industrial

Kód: 180L0240

Neohodnoceno

30 113 Kč 24 887 Kč bez DPH

Momentálně nedostupné

Zobrazit všechny související produkty

Popis produktu není dostupný

Kategorie:	VDHT 3/2
Hmotnost:	1.7 kg
EAN:	5715162673638
Flow [gpm] [Min]:	0.300
Closing Time [ms] [Max]:	250
Closing Time [ms] [Min]:	250
Actuator size [mm]:	13.5
Connection standard:	Cetop 3, BSP
Media temperature [°F] [Max]:	122
Media temperature [°F] [Min]:	36
Height (EF000040):	137
Piston diameter Ø [mm]:	18
Opening time [ms] [Max]:	250
Function:	NC, NO
Opening time [ms] [Min]:	250
Outlet size [in]:	CETOP 3
Width (EF000008):	137
Operating pressure [barg] [Max]:	140
Flow [l/min] [Max]:	15.00
Operating pressure [barg] [Min]:	2
Flow [l/min] [Min]:	1.00
Operating pressure [psig] [Max]:	2000
Flow [gpm] [Max]:	4.000
Operating pressure [psig] [Min]:	29
Serviceable:	Yes
Seal Material:	FKM
Operation:	Direct pilot operated
Material type:	Neutral media
Direction:	Manifold
Parts Program name:	VDHT
Body material:	AISI 304
Application:	Industrial
Media temperature [°C] [Min]:	2
Type of accessory/spare part (EF000215):	Other
Outlet connection size [in]:	CETOP3
Product description:	Solenoid operated valves
China RoHS compliance:	Out of scope
In scope of WEEE:	No
Type designation:	VDHT 15 EC NC-NO
REACH Candidate List substances:	No
Inlet connection size [in]:	CETOP 3
Number of ways:	3/2
Contains batteries:	No
EU RoHS exemption clause:	No
EU RoHS compliance:	Yes
Media temperature [°C] [Max]:	50
Spare part (EF013237):	TRUE
Inlet size [in]:	CETOP 3
Accessory (EF013236):	TRUE
