Cívka solenoidu, BA230A, Štítek DIN, Napájecí napětí [V] AC: 220 - 230 (042N7501)
Kód: 042N7501Související produkty
Detailní popis produktu

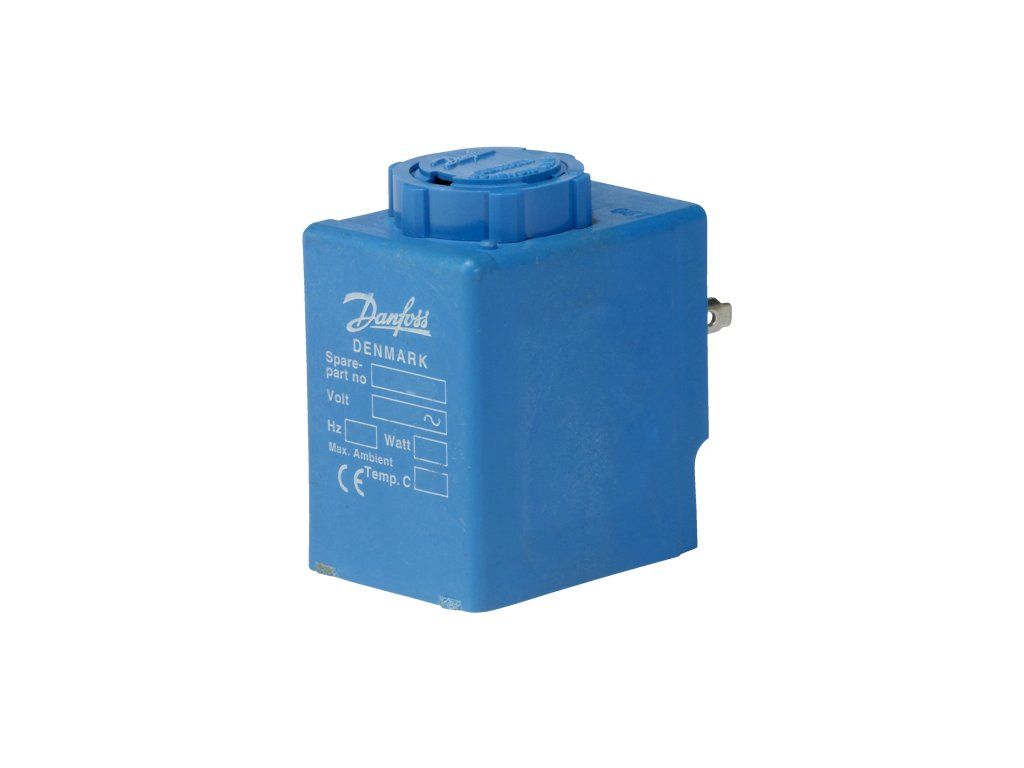

Cívka solenoidu Danfoss BA230A je originální náhradní díl pro elektromagnetické ventily, zajišťující elektromagnetické ovládání ventilu při přivedení napájecího napětí.
- Elektrické připojení: DIN Spade (EN175301-803)
- Příkon: 12 W
- Krytí: IP00
- Třída izolace vinutí: Class H to IEC 85
- Kompatibilní s ventily: EV210B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV310B
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.16 kg |
| EAN: | 5702423023370 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | DIN Spade |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Coil fastening: | Nut and snap |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 230 |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Class H to IEC 85 |
| Identical product: | 042N8501 |
| Electrical connection: | DIN Spade |
| Serviceable: | No |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Supply voltage [V] AC [min]: | 220 |
| Electrical connector: | 3 x spades |
| Product accessories: | Solenoid coil accessories |
| Parts included: | Nut, Snap fastener |
| Power consumption 50Hz [VA]: | 22.0 |
| Parts Program name: | EV210B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV310B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Supply voltage [V] AC [max]: | 230 |
| Power consumption [W] 50Hz: | 12.0 |
| Type designation: | BA230A |
| REACH Candidate List substances: | No |
| Electrical connection standard: | EN175301-803 |
| Duty rating: | Continuous |
| Contains batteries: | No |
| Frequency [Hz]: | 50 Hz |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Coil design standard: | VDE 0580 |
| Supply voltage 50Hz Min [V]: | 220 |
| Spare part (EF013237): | TRUE |
| Rel. Humidity conditions: | Non-condensation |
| Ambient temperature range [°C] [max]: | 40 |
| Accessory (EF013236): | TRUE |
| SCIP dossier product name: | 042N7501 |
| Quantity per packing format: | 45 |
| Ambient temperature range [°F] [max]: | 104 |
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
Solenoid coil Type AB, AM, AC, AK, AL, AP, BB, BA, BC and BD: Instalační příručka
