Cívka solenoidu, BE230AS, Štítek DIN, Napájecí napětí [V] AC: 220 - 230, Multi balení (018F6176)
Kód: 018F6176Detailní popis produktu

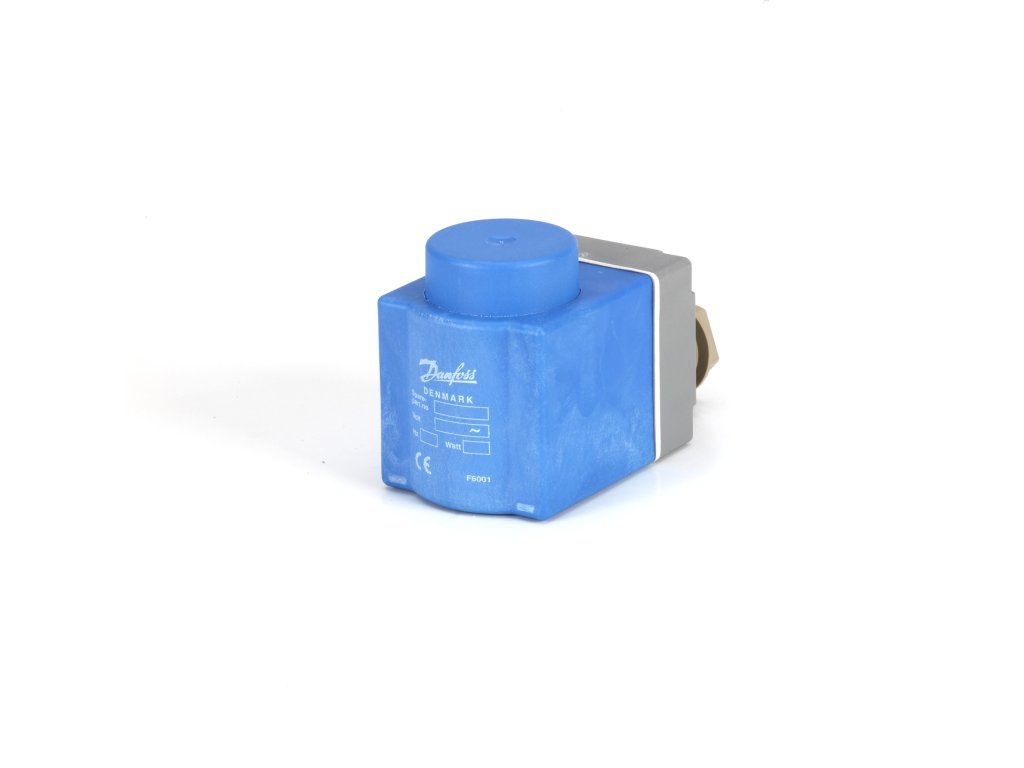

Cívka solenoidu Danfoss BE230AS je originální náhradní díl pro elektromagnetické ventily, zajišťující elektromagnetické ovládání ventilu při přivedení napájecího napětí.
- Elektrické připojení: DIN Spade (EN175301-803)
- Příkon: 12 W
- Krytí: IP20
- Třída izolace vinutí: Class H to IEC 85
- Kompatibilní s ventily: EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV227B, EV250B, EV251B
- Schválení: CE, EAC, LLC CDC TYSK
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.27 kg |
| EAN: | 5702428024402 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | DIN Spade |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Spare part number: | 018F6176 |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 230 |
| Rel. Humidity [% RH] [min]: | |
| Coil winding insulation class: | Class H to IEC 85 |
| Electrical connection: | DIN Spade |
| Serviceable: | No |
| Enclosure rating IP: | IP20 |
| Ambient temperature range [°C] [min]: | -40 |
| Supply voltage [V] AC [min]: | 220 |
| Electrical connector: | 3 x spades |
| Product accessories: | Solenoid coil accessories |
| Parts included: | Cap |
| Power consumption 50Hz [VA]: | 22.0 |
| Parts Program name: | EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV227B, EV250B, EV251B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Compliance: | EN 60730-1 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CE, EAC, LLC CDC TYSK |
| Supply voltage [V] AC [max]: | 230 |
| Power consumption [W] 50Hz: | 12.0 |
| Type designation: | BE230AS |
| REACH Candidate List substances: | No |
| Electrical connection standard: | EN175301-803 |
| Duty rating: | Continuous |
| Contains batteries: | No |
| CE mark: | Yes |
| Frequency [Hz]: | 50 Hz |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Coil design standard: | VDE 0580 |
| Supply voltage 50Hz Min [V]: | 220 |
| Spare part (EF013237): | TRUE |
| Rel. Humidity conditions: | Non-condensation |
| Ambient temperature range [°C] [max]: | 80 |
| Accessory (EF013236): | TRUE |
| SCIP dossier product name: | Solenoid coils |
| Power cons Dual 50Hz [W]: | 11.0 |
| Power cons Dual 50Hz [VA]: | 19 |
| Quantity per packing format: | 50 |
| Ambient temperature range [°F] [max]: | 175 |
-
