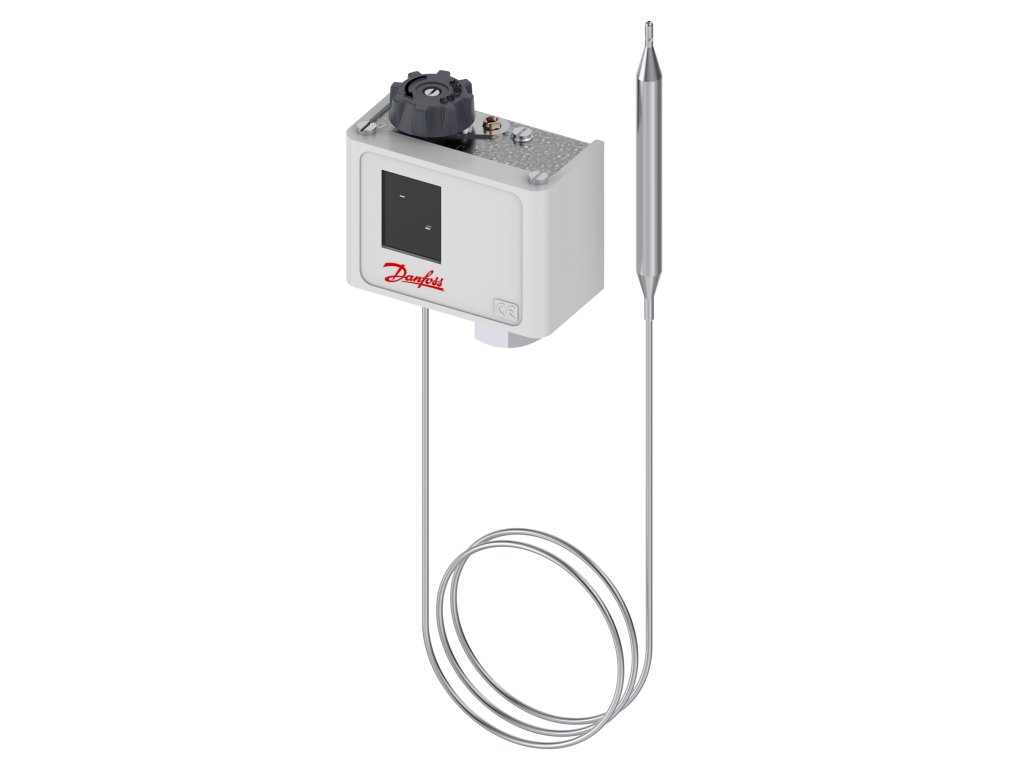

    Thermostat, KP71 (060L201066)

    Code: 060L201066
    Not rated
    ID433736790189 0101
    €84,05 / pcs €69,46 excl. VAT Measure price:
    Backorder
    Danfoss KP71 thermostat, setting range -4 to 21 °C, sensor Remote bulb, IP30.

    Detailed information

    Related products

    ID000086488501 0101
    Accessory, switches, Mounting strap (017-420466)
    Backorder
    €18,14 excl. VAT
    €21,95

    Genuine Danfoss part, Clamping band, for KP, RT (item no. 017-420466).

    Code: 017-420466
    ID486954306965 0101
    Accessory, switches, Sensor thermowell (017-421666)
    Backorder
    €84,43 excl. VAT
    €102,16

    Genuine Danfoss part, Sensor pocket, for KP, RT (item no. 017-421666).

    Code: 017-421666
    ID263149476787 0101 preview
    Accessory, switches, Sensor thermowell (017-436966)
    Backorder
    €160,27 excl. VAT
    €193,93

    Genuine Danfoss part, Sensor pocket, for KP, RT (item no. 017-436966).

    Code: 017-436966
    ID068886495379 0101
    Accessory, switches, Mounting bracket (060-105366)
    Backorder
    €6,90 excl. VAT
    €8,35

    Genuine Danfoss part, Angle bracket, for KP, MP (item no. 060-105366).

    Code: 060-105366
    ID000086491137 0101
    Accessory, switches, Seal kit, for unarmoured capillary tube (060L327366)
    Backorder
    €15,87 excl. VAT
    €19,20

    Genuine Danfoss part, Seal kit, for CAS, KPS, MBC, RT (item no. 060L327366).

    Code: 060L327366
    Show all related products Previous product Next product

    Product detailed description

    The Danfoss KP series thermostat is a proven temperature switch with a capillary sensor, traditionally used for the control and protection of refrigeration and air-conditioning systems.

    • Temperature setting range: -4 to 21 °C
    • Adjustable differential (bottom of range): 3–10 °C
    • Sensor type: remote capillary sensor
    • Sensor size (Ø x L): 9.5 x 115 mm
    • Capillary tube length: 2030 mm
    • Max. sensor temperature: 80 °C
    • Charge type: Adsorption
    • Contact function: SPDT
    • Reset: automatic reset
    • Electrical connection: Swivel cable connector (ANSI/ASME B1.20.1)
    • Enclosure rating: IP30
    • Ambient temperature range: -40 to 65 °C
    • Approvals: BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2

    Additional parameters

    Category: KP
    Weight: 0.42 kg
    EAN: 5702428016735
    Diff. @ Max. range setting[°F] [min]: 4.0
    Diff. @ Max. range setting[°C] [min]: 2.2
    Ambient temperature range [°F] [min]: -40
    Cap. tube length fraction [in]: 80 in
    Diff. @ Min. range setting[°C] [min]: 3.0
    Max. sensor temperature [°F]: 176.0
    Electrical connection size: NPSM 1/2 - 14
    UL mark: Yes
    Enclosure rating Nema (~): 1
    Amb. Temp. Note: 80 °C/176 °F for max 120 min
    Height (EF000040): 48
    Contact function: SPDT
    SCIP dossier no.: c1a694ec-501f-43db-83d2-8a9a314459e0
    Charge type: Adsorption
    Diff. @ Min. range setting[°C] [max]: 10.0
    Width (EF000008): 48
    Diff. @ Min. range setting[°F] [min]: 5.4
    Electrical connection: Swivel cable connector
    Temperature range [°F] [min]: 25
    Differential type: Adjustable
    Serviceable: No
    Reset function: Auto
    Enclosure rating IP: IP30
    Ambient temperature range [°C] [min]: -40
    Diff. @ Max. range setting[°C] [max]: 9.0
    Product accessories: Switches accessories
    Parts included: Screws
    Sensor size (Ø x L) [in]: 3/8 x 4 1/2 in
    Depth (EF000049): 48
    Contact rating: 120 V ac, 16 FLA, 96 LRA, 16 A resistive, single phase, 240 V AC, 8 FLA, 48 LRA, 8 A resistive, single phase, Pilot Duty: 120/240 V ac 3A, Pilot Duty: 240V dc 12W(0.05A)
    Diff. @ Max. range setting [K] [min]: 2.2
    IFTTT support available (EF011072): FALSE
    Compatible with Apple HomeKit (EF014925): FALSE
    Compatible with Google Assistant (EF014926): FALSE
    Diff. @ Min. range setting [K] [min]: 3.0
    Product description: Thermostat
    China RoHS compliance: Yes
    Electrical spec. standard: EN 60947-4/-5
    Diff. @ Min. range setting[°F] [max]: 18.0
    Packing format: Multi pack
    Max. sensor temperature [°C]: 80
    Approval: BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2
    Electrical conn. Male/Female: Female
    REACH Candidate List substances: Lead (CAS no. 7439-92-1), Cadmium oxide (CAS no.1306-19-0)
    Electrical connection standard: ANSI/ASME B1.20.1
    Diff. @ Max. range setting [K] [max]: 9.0
    Contains batteries: No
    CE mark: Yes
    EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2
    EU RoHS exemption clause: No
    EU RoHS compliance: Yes
    Sensor size (Ø x L) [mm]: 9.5 x 115 mm
    Ambient temperature range [°C] [max]: 65
    Degree of protection (IP) (EF005474): IP30
    Temperature range [°F] [max]: 70
    UL approval file name: E31024
    SCIP dossier product name: KP KPS KPU Thermostat
    Temperature range [°C] [min]: -4
    EN 60947 electrical properties: Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A
    Diff. @ Min. range setting [K] [max]: 10.0
    Diff. @ Max. range setting[°F] [max]: 16.0
    Sensor type: Remote bulb
    Compatible with Amazon Alexa (EF014927): FALSE
    Temperature range [°C] [max]: 21
    Quantity per packing format: 32
    Ambient temperature range [°F] [max]: 150
    Capillary tube length [mm]: 2030
    Explosion-proof (EF004663): FALSE
