Cívka solenoidu, BG024DS, null: 24, Multi balení (018F6857)
Kód: 018F6857Související produkty
Detailní popis produktu

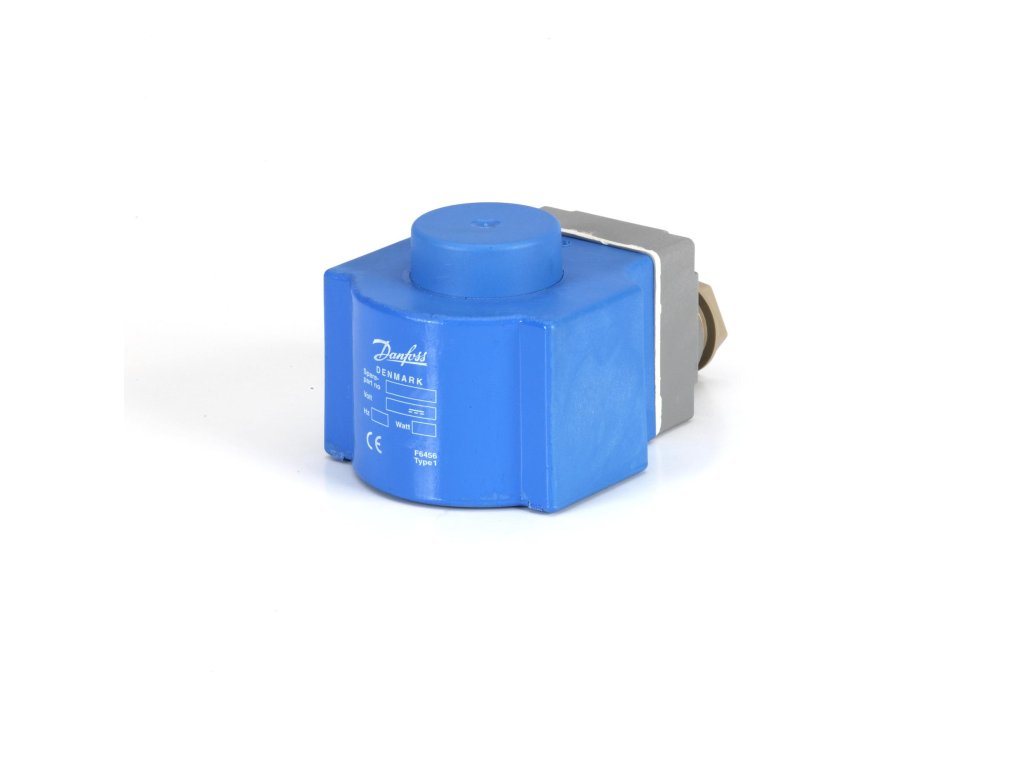

Cívka solenoidu Danfoss BG024DS je originální náhradní díl pro elektromagnetické ventily, zajišťující elektromagnetické ovládání ventilu při přivedení napájecího napětí.
- Elektrické připojení: Connection Box
- Krytí: IP67
- Třída izolace vinutí: Class H to IEC 85

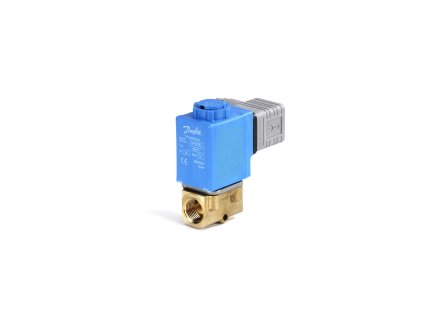

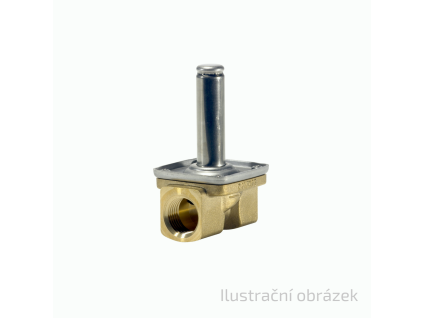

- Kompatibilní s ventily: EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV250B
- Schválení: CE, CMIM, EAC, LLC CDC TYSK
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.57 kg |
| EAN: | 5702428026260 |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 13.5 mm |
| China RoHS exemption clause: | No |
| Compliance: | EN 60730-1 |
| Coil connection: | Connection Box |
| Electrical connection size: | Pg 13.5 |
| China RoHS compliance: | Out of scope |
| Spare part number: | 018F6857 |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CE, CMIM, EAC, LLC CDC TYSK |
| Type designation: | BG024DS |
| REACH Candidate List substances: | No |
| Coil fastening: | Clip-on |
| Duty rating: | Continuous |
| Rel. Humidity [% RH] [max]: | 100 |
| Contains batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Class H to IEC 85 |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Electrical connection: | Terminal box |
| Coil design standard: | VDE 0580 |
| Spare part (EF013237): | TRUE |
| Serviceable: | No |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Ambient temperature range [°C] [max]: | 50 |
| Power consumption [W] DC: | 20.0 |
| Electrical connector: | Screwed cable entry |
| Coil type: | I |
| Accessory (EF013236): | TRUE |
| Product accessories: | Solenoid coil accessories |
| Parts Program name: | EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV250B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Supply voltage [V] DC: | 24.00 |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 120 |
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
Solenoid coil Types BB, BE, BF, BG, and BN: Instalační příručka
-
Solenoid coil type BB, BE, BF, BG, and BN: Datový list
-
Valve station, type ICF 15/20 EVRAT: Datový list
