Cívka solenoidu, AZ120CS, Štítek DIN, Multi balení (042N4202)
Kód: 042N4202Detailní popis produktu

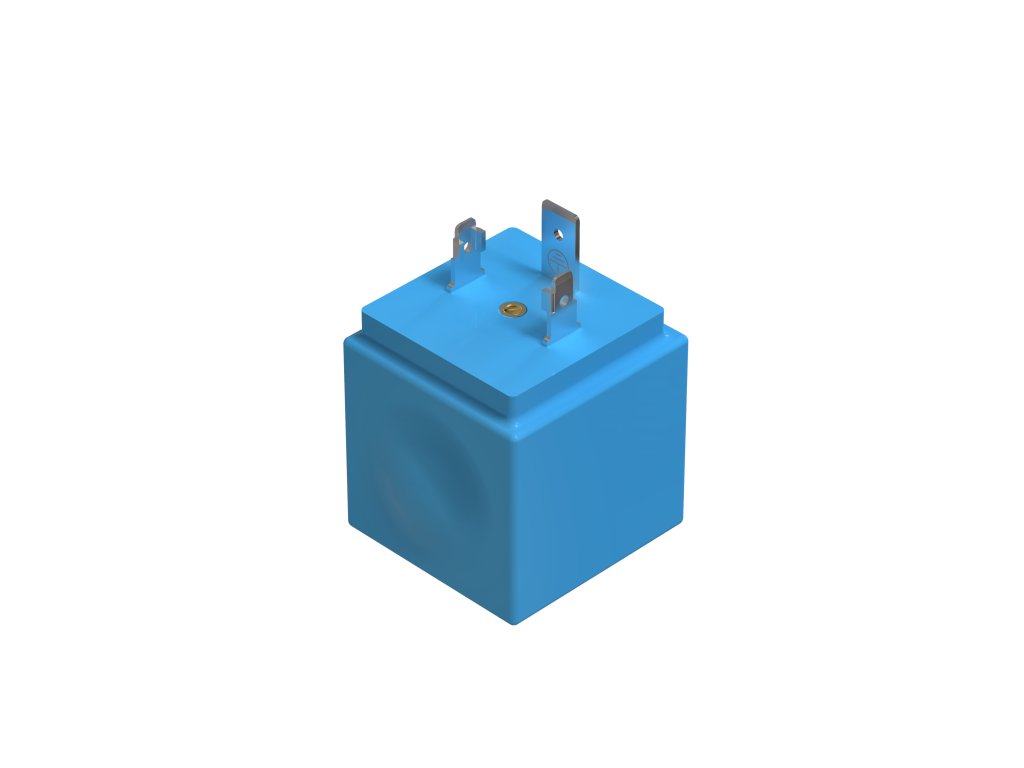

Cívka solenoidu Danfoss AZ120CS je originální náhradní díl pro elektromagnetické ventily, zajišťující elektromagnetické ovládání ventilu při přivedení napájecího napětí.
- Elektrické připojení: DIN Spade (EN175301-803)
- Příkon: 8.5 W
- Krytí: IP00
- Kompatibilní s ventily: EV220S
- Schválení: cURus
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.11 kg |
| EAN: | 5702428045308 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | DIN Spade |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Supply voltage 60Hz Max [V]: | 120 |
| UL mark: | Yes |
| Power consumption 60Hz [VA]: | 14.0 |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 115 |
| Rel. Humidity [% RH] [min]: | 0 |
| Electrical connection: | DIN Spade |
| Serviceable: | No |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Electrical connector: | 3 x spades |
| Product accessories: | Solenoid coil accessories |
| Power consumption 50Hz [VA]: | 16.0 |
| Parts Program name: | EV220S |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 9 mm |
| Compliance: | EN 60730-1 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | cURus |
| Power consumption [W] 50Hz: | 8.5 |
| Type designation: | AZ120CS |
| Power consumption [W] 60Hz: | 7.0 |
| REACH Candidate List substances: | No |
| Electrical connection standard: | EN175301-803 |
| Contains batteries: | No |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS exemption clause: | No |
| Supply voltage 60Hz Min [V]: | 110 |
| EU RoHS compliance: | Yes |
| Spare part (EF013237): | TRUE |
| Rel. Humidity conditions: | Non-condensation |
| Ambient temperature range [°C] [max]: | 50 |
| Accessory (EF013236): | TRUE |
| UL approval file name: | MH29671 |
| SCIP dossier product name: | EVR 10-22 (NO) |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 120 |
-
