Cívka solenoidu, BI024D, Kabel, null: 24, Multi balení (018Z8569)
Kód: 018Z8569Detailní popis produktu

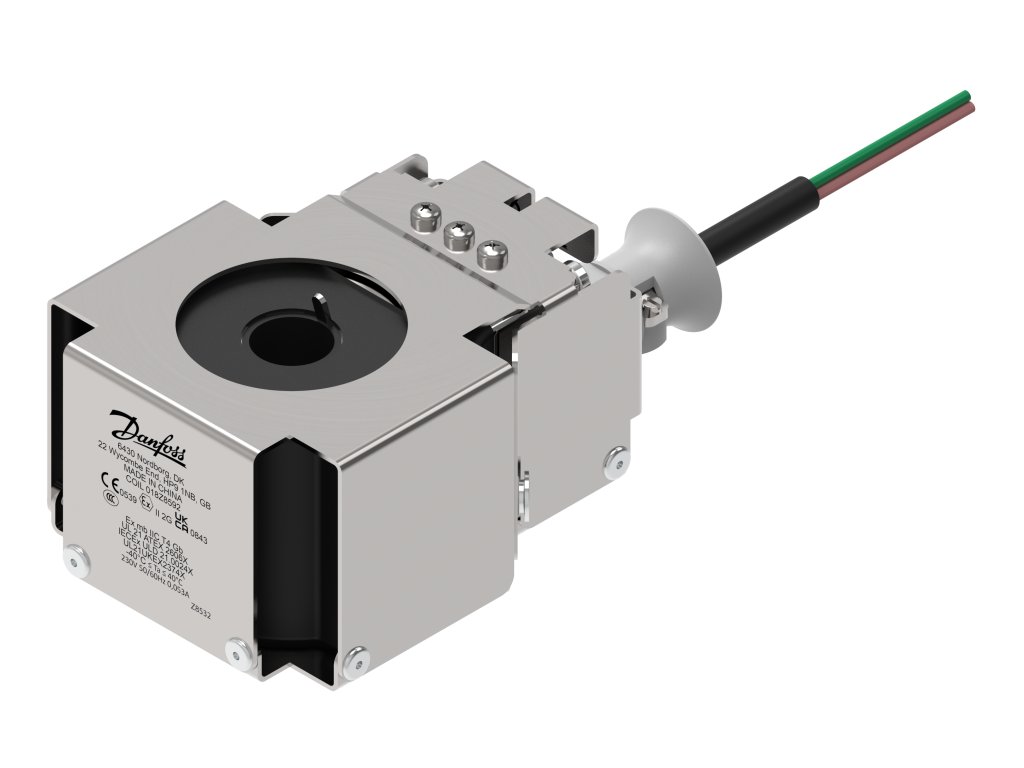

Cívka solenoidu Danfoss BI024D je originální náhradní díl pro elektromagnetické ventily, zajišťující elektromagnetické ovládání ventilu při přivedení napájecího napětí.
- Elektrické připojení: Cable
- Délka kabelu: 10 m
- Krytí: IP67
- Třída izolace vinutí: Class H to IEC 85
- Kompatibilní s ventily: AKV10P/PS, AKV15, AKV20, AKVA, EV210B 1,5 - 25, EV210BW 1,5 - 25, EV220B 6 - 100, EV220BW 15 -50, EV221BW 6 - 22, EV222B 15 - 50, EV250B 6 - 22, EV250BW 6 - 22, EV251B 10 - 22, EVM, EVM NO and NC, EVR NC 2 - 40, EVR NO 3 - 40, EVRA(T) 3 - 40, EVRB, EVRF, EVRP, EVRS(T) 3 - 20, ICF 15-65, VDH 2 - 120, VDHT xx, VPH 15
- Schválení: ATEX - Cat. 2 - Zone 1
Doplňkové parametry
| Kategorie: | BI |
|---|---|
| Hmotnost: | 1.45 kg |
| EAN: | 5715162502273 |
| Conductor area [mm2]: | 3 x 0.75 mm2 |
| Colour: | Black |
| Type of accessory/spare part (EF000215): | Other |
| Electrical conn. comments: | Earth conn. wiring <gt/> 4 mm2 |
| Actuator size: | 13.5 mm |
| Cable length [m]: | 10.000 |
| China RoHS exemption clause: | No |
| EX Sales text: | -40C<lt/>ta<lt/>+40C, DEMKO 01 ATEX127938X, Ex mb IIC T4 Gb, IECEx ULD 21.0024X, UL 21 ATEX 2606X, UL21UKEX2374X |
| Coil connection: | Cable |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Enclosure rating Nema (~): | 6 |
| Approval: | ATEX - Cat. 2 - Zone 1 |
| Type designation: | BI024D |
| REACH Candidate List substances: | No |
| Coil fastening: | Finger screw |
| Duty rating: | Continuous |
| Contains batteries: | No |
| Coil winding insulation class: | Class H to IEC 85 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Electrical connection: | Cable |
| Spare part (EF013237): | TRUE |
| Serviceable: | No |
| Enclosure rating IP: | IP67 |
| Cable length [in]: | 196.00 |
| Power consumption [W] DC: | 12.0 |
| Electrical connector: | 3 core cable |
| Accessory (EF013236): | TRUE |
| Product accessories: | Solenoid coil accessories |
| Parts included: | IP67 seal kit |
| Parts Program name: | AKV10P/PS, AKV15, AKV20, AKVA, EV210B 1,5 - 25, EV210BW 1,5 - 25, EV220B 6 - 100, EV220BW 15 -50, EV221BW 6 - 22, EV222B 15 - 50, EV250B 6 - 22, EV250BW 6 - 22, EV251B 10 - 22, EVM, EVM NO and NC, EVR NC 2 - 40, EVR NO 3 - 40, EVRA(T) 3 - 40, EVRB, EVRF, EVRP, EVRS(T) 3 - 20, ICF 15-65, VDH 2 - 120, VDHT xx, VPH 15 |
| Earth connection: | Ext. Terminal, Green/yellow wire |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Supply voltage [V] DC: | 24.00 |
| Quantity per packing format: | 6 |
-
