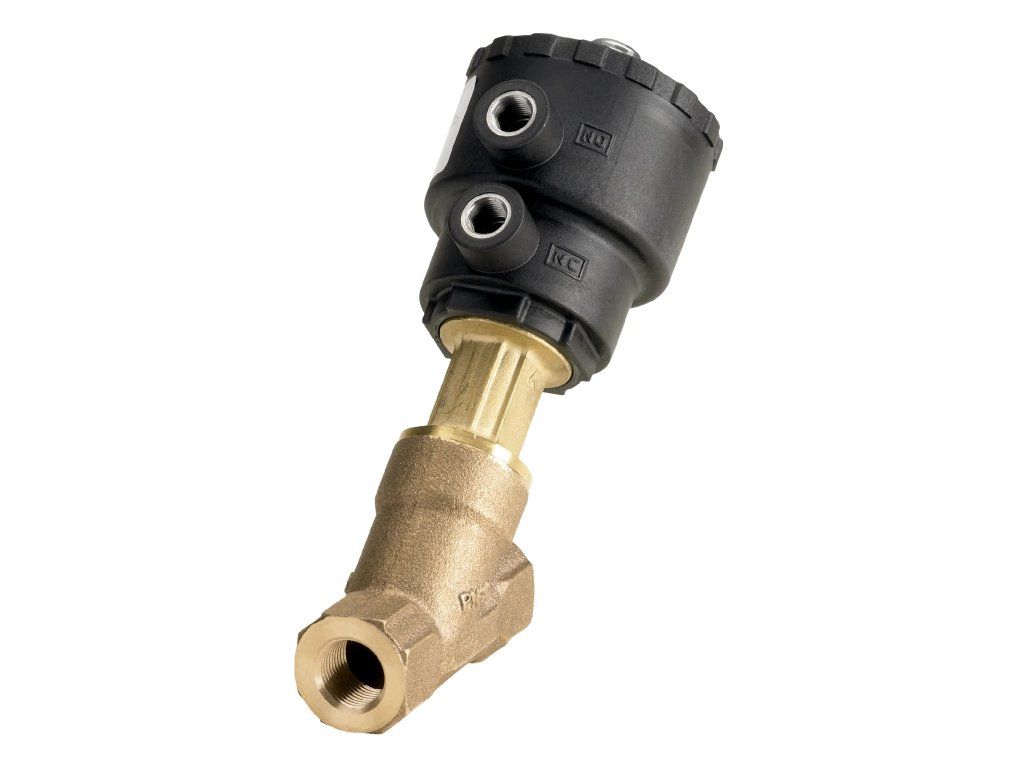

Externally operated angle-seat valve, AV210A, G, 1/2, PTFE, Function: NC (042N4402)
Code: 042N4402Product detailed description
The Danfoss AV210A externally operated angle-seat valve is a pneumatically/hydraulically actuated valve designed for reliable flow control in demanding industrial applications requiring a rugged design and long service life.
- Function: normally closed (NC)
- Connection: G 1/2
- Kv flow coefficient: 5.3 m³/h
- Seal material: PTFE
- Body material: Bronze
- Media temperature range: -30 to 180 °C
- Max. working pressure: 16 bar
- Differential pressure range: 0–16 bar
- Control pressure range: 4.2–10 bar
- Operating principle: Piston (angle)
Additional parameters
| Category: | Externally operated valves |
|---|---|
| Weight: | 0.64 kg |
| EAN: | 5702423194193 |
| Medium temperature range [°C] [max]: | 180 |
| Ambient temperature range [°F] [min]: | -22 |
| SCIP dossier no.: | 0a1684e1-9b13-4d79-ae59-ca9cab611349 |
| Material quality (EF001257): | Other |
| Function: | NC |
| Max. test pressure [psig]: | 348.0 |
| With thermometer (EF002167): | FALSE |
| Medium temperature range [°C] [min]: | -30 |
| With insulation (EF021057): | FALSE |
| Connection Internal/External: | Internal |
| Serviceable: | Ext. operat. valve spare parts |
| Seal Material: | PTFE |
| Surface protection (EF000139): | Other |
| Ambient temperature range [°C] [min]: | -30 |
| Operation: | Piston (angle) |
| Control head diameter [mm]: | 40 |
| Product accessories: | Ext. operat. valve accessories |
| Connection type: | G |
| Control pressure range [psig] [max]: | 145.0 |
| Connection size [in]: | 1/2 |
| Control pressure range [psig] [min]: | 60.9 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Bronze |
| Control pressure range [bar] [min]: | 4.20 |
| Orifice size [mm]: | 15.00 |
| Medium temperature range [°F] [min]: | -22 |
| Cv value [gal/min]: | 6.100 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 5.300 |
| Differential pressure [bar] [min]: | 0.000 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 16.000 |
| Contains batteries: | No |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 16.0 |
| Medium temperature range [°F] [max]: | 356 |
| Closing: | Against flow |
| Control pressure range [bar] [max]: | 10.00 |
| Ambient temperature range [°C] [max]: | 60 |
| SCIP dossier product name: | AV210 |
| With position indicator (EF022469): | FALSE |
| Max. test pressure [bar]: | 24.0 |
| Quantity per packing format: | 8 |
| Ambient temperature range [°F] [max]: | 140 |
| Max. Working Pressure [psig]: | 232 |
-
