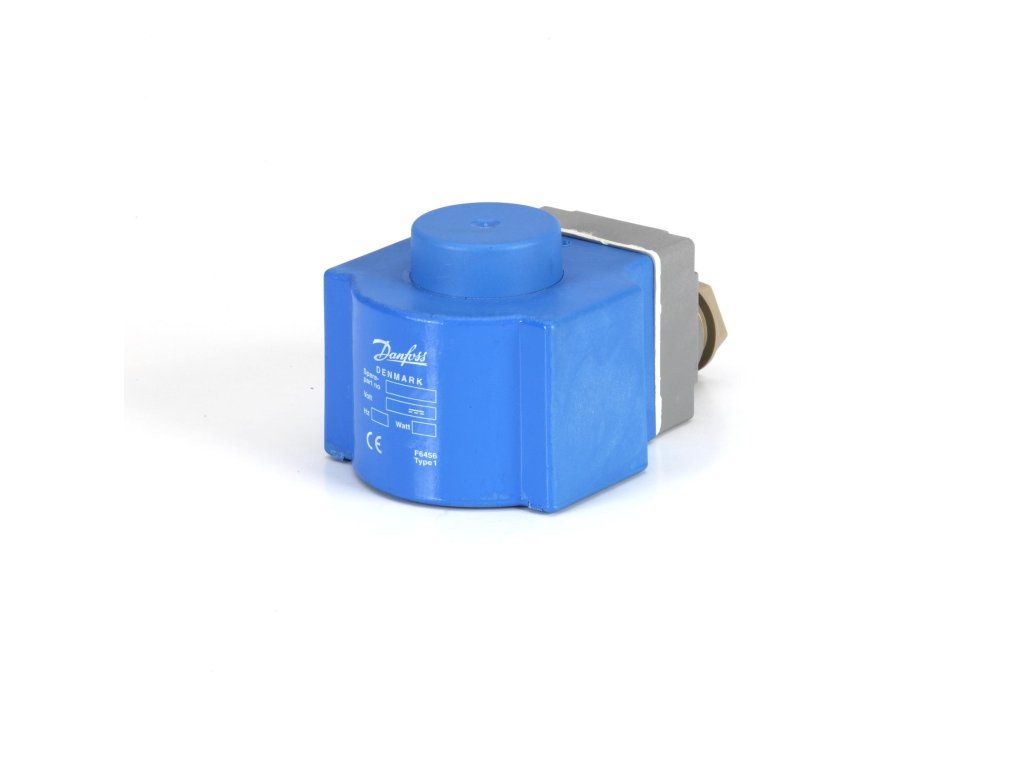

Solenoid coil, BG230AS, Terminal box, Supply voltage [V] AC: 220 - 230, Multi-pack (018F6801)
Code: 018F6801Product detailed description
The Danfoss BG230AS solenoid coil is a genuine spare part for solenoid valves, providing electromagnetic actuation of the valve when supply voltage is applied.
- Electrical connection: Connection Box
- Power consumption: 15 W
- Enclosure rating: IP67
- Coil insulation class: Class H to IEC 85
- Compatible with valves: EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV250B
- Approvals: CE, CMIM, EAC, LLC CDC TYSK
Additional parameters
| Category: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Weight: | 0.48 kg |
| EAN: | 5702428027304 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | Connection Box |
| Electrical connection size: | Pg 13.5 |
| Spare part number: | 018F6801 |
| Enclosure rating Nema (~): | 6 |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 100 |
| Supply voltage 50Hz Max [V]: | 230 |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Class H to IEC 85 |
| Identical product: | 018F8801 |
| Electrical connection: | Terminal box |
| Serviceable: | No |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Supply voltage [V] AC [min]: | 220 |
| Electrical connector: | Screwed cable entry |
| Product accessories: | Solenoid coil accessories |
| Power consumption 50Hz [VA]: | 28.0 |
| Parts Program name: | EV210B, EV212B, EV220B 15 - 50, EV220B 6 - 22, EV220B 65 - 100, EV222B, EV224B, EV250B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Compliance: | EN 60730-1 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CE, CMIM, EAC, LLC CDC TYSK |
| Supply voltage [V] AC [max]: | 230 |
| Power consumption [W] 50Hz: | 15.0 |
| Type designation: | BG230AS |
| REACH Candidate List substances: | No |
| Duty rating: | Continuous |
| Contains batteries: | No |
| CE mark: | Yes |
| Frequency [Hz]: | 50 Hz |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Coil design standard: | VDE 0580 |
| Supply voltage 50Hz Min [V]: | 220 |
| Spare part (EF013237): | TRUE |
| Ambient temperature range [°C] [max]: | 80 |
| Accessory (EF013236): | TRUE |
| SCIP dossier product name: | Solenoid coils |
| Power cons Dual 50Hz [W]: | 13.0 |
| Power cons Dual 50Hz [VA]: | 25 |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 175 |
-
