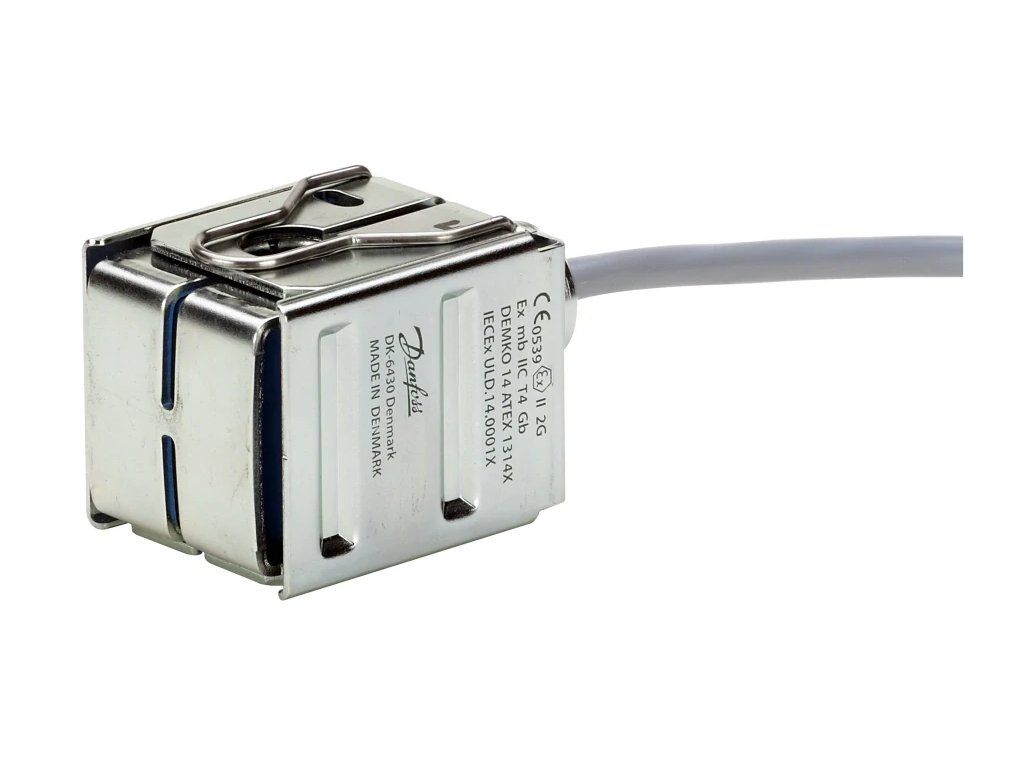

Solenoid coil, BZ120C, Cable, 9 m, Multi-pack (018F4703)
Code: 018F4703Product detailed description
The Danfoss BZ120C solenoid coil is a genuine spare part for solenoid valves, providing electromagnetic actuation of the valve when supply voltage is applied.
- Electrical connection: Cable
- Power consumption: 8 W
- Cable length: 9 m
- Enclosure rating: IP65
- Compatible with valves: EV220B 15 - 50, EV220B 6 - 22, EV224B, EV227B, EV250B
- Approvals: ATEX - Cat. 2 - Zone 1, CCC
Additional parameters
| Category: | Valve coils |
|---|---|
| Weight: | 0.92 kg |
| EAN: | 5702428890502 |
| Electrical conn. comments: | Earth conn. wiring <gt/> 4 mm2 |
| Ambient temperature range [°F] [min]: | -40 |
| China RoHS exemption clause: | No |
| Coil connection: | Cable |
| Supply voltage 60Hz Max [V]: | 120 |
| Enclosure rating Nema (~): | 4 |
| Power consumption 60Hz [VA]: | 16.0 |
| Coil fastening: | Clip-on |
| Rel. Humidity [% RH] [max]: | 100 |
| Supply voltage 50Hz Max [V]: | 110 |
| Rel. Humidity [% RH] [min]: | 0 |
| Electrical connection: | Cable |
| Serviceable: | No |
| Enclosure rating IP: | IP65 |
| Ambient temperature range [°C] [min]: | -40 |
| Cable length [in]: | 354.00 |
| Product accessories: | Solenoid coil accessories |
| Power consumption 50Hz [VA]: | 16.0 |
| Parts Program name: | EV220B 15 - 50, EV220B 6 - 22, EV224B, EV227B, EV250B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Conductor area [mm2]: | 3 x 0.75 mm2 |
| Colour: | Blue |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Cable length [m]: | 9.000 |
| EX Sales text: | -40°C <lt/> Ta <lt/> +45°C, II 2G Ex mb IIC T4 Gb |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | ATEX - Cat. 2 - Zone 1, CCC |
| Power consumption [W] 50Hz: | 8.0 |
| Type designation: | BZ120C |
| Power consumption [W] 60Hz: | 8.5 |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Spare part (EF013237): | TRUE |
| Ambient temperature range [°C] [max]: | 45 |
| Used for product: | EV220B 15 - 50: not NO valves |
| Accessory (EF013236): | TRUE |
| Quantity per packing format: | 12 |
| Ambient temperature range [°F] [max]: | 113 |
-
