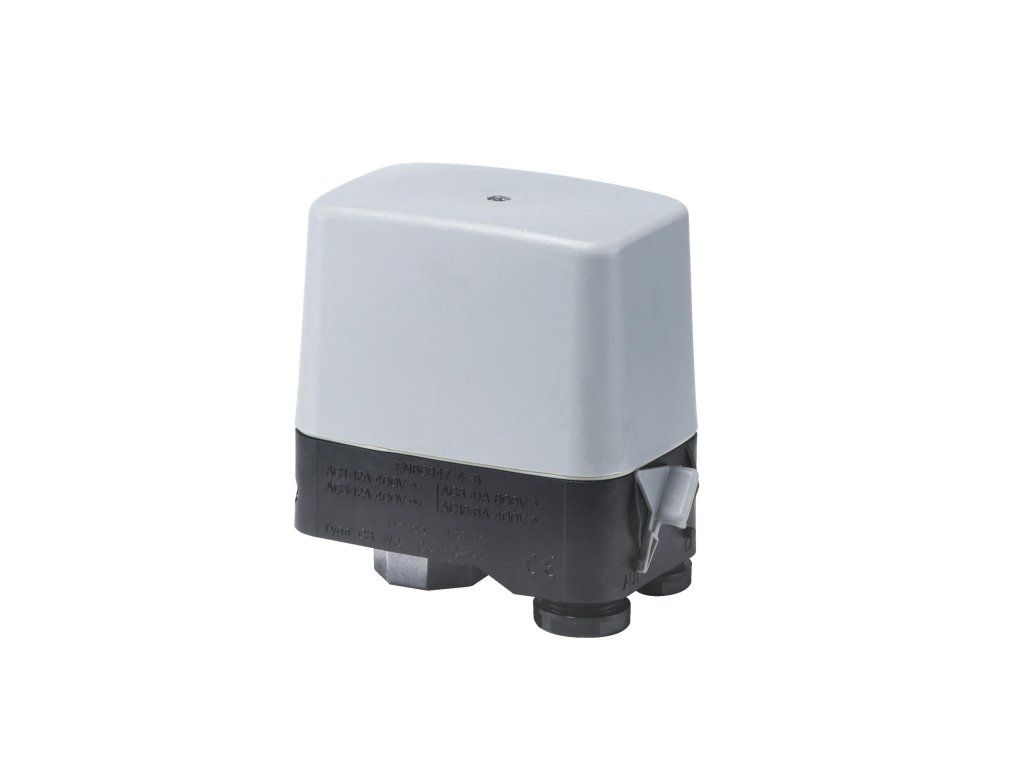

Pressure switch, CS (031E024066)
Code: 031E024066Product detailed description
The Danfoss CS series pressure switch has a diaphragm sensing element and is designed for applications requiring a wider control range in industrial and refrigeration systems.
- Control range: 7–20 bar
- Max. working pressure: 20 bar
- Sensing element: diaphragm
- Pressure connection: G 1/4 (ISO 228-1)
- Contact function: TPST
- Reset: automatic reset
- Electrical connection: Screwed cable entry (DIN 40430)
- Enclosure rating: IP43
- Ambient temperature range: -20 to 70 °C
- Approvals: CE
Additional parameters
| Category: | CS |
|---|---|
| Weight: | 0.45 kg |
| EAN: | 5702423208883 |
| Ambient temperature range [°F] [min]: | -4 |
| Electrical connection size: | Pg 16 |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Height: | 69 |
| Contact function: | TPST |
| SCIP dossier no.: | e65e8dcc-5aa5-41db-aed7-9aec2d1ff7f0 |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 464.0 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 128 |
| Electrical connection: | Přišroubovaný kabelový vstup |
| Max. operating pressure: | 20.0 |
| Diff.@Min. range setting [bar] [max]: | 3.50 |
| Serviceable: | Ne |
| Reset function: | Auto |
| Enclosure rating IP: | IP43 |
| Ambient temperature range [°C] [min]: | -20 |
| Diff.@Min. range setting [bar] [min]: | 2.00 |
| Regulation range [psig] Pe [min]: | 101.50 |
| Diff.@Max. range setting [bar] [min]: | 3.50 |
| Regulation range [bar] Pe [max]: | 20.00 |
| Max. test pressure [bar] Pe: | 32.0 |
| Product accessories: | Příslušenství spínače |
| Regulation range [bar] Pe [min]: | 7.00 |
| Pressure Male/Female: | VNĚJŠÍ |
| Depth: | 138 |
| Contact rating: | AC3=12 A, 220 - 415 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
| Product description: | Presostat |
| China RoHS compliance: | Out of scope |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | CE |
| Electrical conn. Male/Female: | VNĚJŠÍ |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 20.0 |
| Pressure sensing element: | Membrána |
| Diff.@Max. range setting [bar] [max]: | 7.00 |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP): | IP43 |
| SCIP dossier product name: | CS Pressure Switch |
| Regulation range [psig] Pe [max]: | 290.10 |
| Quantity per packing format: | 30 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 290 |
| Explosion-proof: | FALSE |
-
