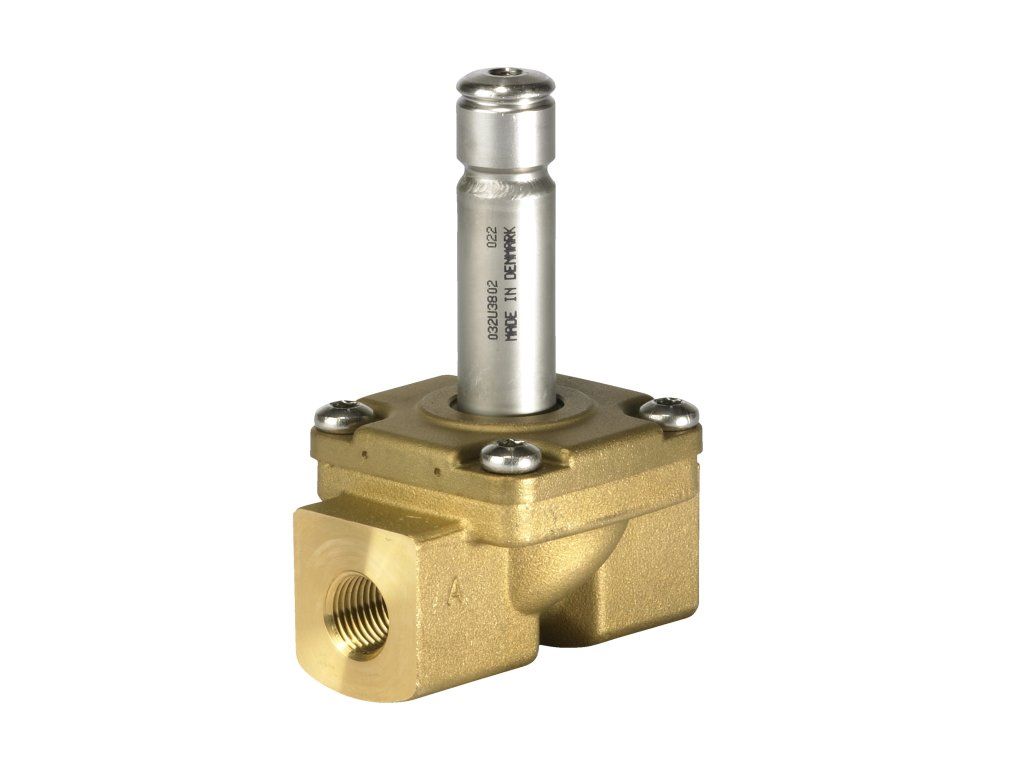

Solenoid valve, EV225B, Function: NC, G, 1/4, 0.9 m³/h, PTFE (032U3802)
Code: 032U3802Related products
![Solenoid coil, BQ240CS, DIN plug, Supply voltage [V] AC: 240, Multi-pack (018F4511)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4542_solenoid-coil--bq240cs--din-plug--supply-voltage--v--ac--240--multi-pack--018f4511-.jpg?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BQ024CS, DIN plug, Supply voltage [V] AC: 24, Multi-pack (018F4517)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4545_solenoid-coil--bq024cs--din-plug--supply-voltage--v--ac--24--multi-pack--018f4517-.jpg?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
Product detailed description
The Danfoss EV225B solenoid valve automatically opens and closes the flow of media in a pipe based on an electrical signal. It is designed for controlling liquids and gases in industrial, refrigeration and process systems.
- Function: normally closed (NC)
- Connection: G 1/4 (ISO 228-1)
- Kv flow coefficient: 0.9 m³/h
- Seal material: PTFE
- Body material: DZR brass
- Number of ways: 2/2
- Media temperature range: -10 to 185 °C
- Max. working pressure: 10 bar
- Differential pressure range: 0.3–10 bar
- Operating principle: Servo-operated (diaphragm)
- Suitable media: Steam
- Approvals: UL, UR
Additional parameters
| Category: | EV225B pro páru do 180°C |
|---|---|
| Weight: | 0.5 kg |
| EAN: | 5702428472272 |
| Housing material (EF001596): | Brass |
| Medium temperature range [°C] [max]: | 185 |
| Min. pressure difference (EF020189): | 0.300 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 20 |
| China RoHS exemption clause: | 7.3 |
| UL mark: | Yes |
| Est. time to open, water [ms]: | 20 |
| Kvs value (EF022466): | 0.900 |
| Specification key: | EV225B 6BD G14T NC000 |
| Height (EF000040): | 96 |
| SCIP dossier no.: | 37eed611-ac6e-4afb-8c8d-2fa1dd1fb454 |
| Actuator system [mm]: | 13.5 |
| Material quality (EF001257): | Other |
| Function: | NC |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -10 |
| Ambient temperature max. [°C]: | 40 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | PTFE |
| Ambient temperature max. [°F]: | 104 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Media tolerance comments: | Slightly aggressive media |
| Operation: | Servo-operated (diaphragm) |
| Connection type: | G |
| Connection size [in]: | 1/4 |
| Connection material: | DZR brass |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | DZR brass |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 6.00 |
| Medium temperature range [°F] [min]: | 14 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 1.040 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 0.900 |
| Approval: | UL, UR |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | B |
| Type designation: | EV225B 6 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 365 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 1/4 in |
| Max. viscosity (EF025190): | 50 |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Open |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV225B - solenoid valve |
| Max. test pressure [bar]: | 15.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 15 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Steam |
-
