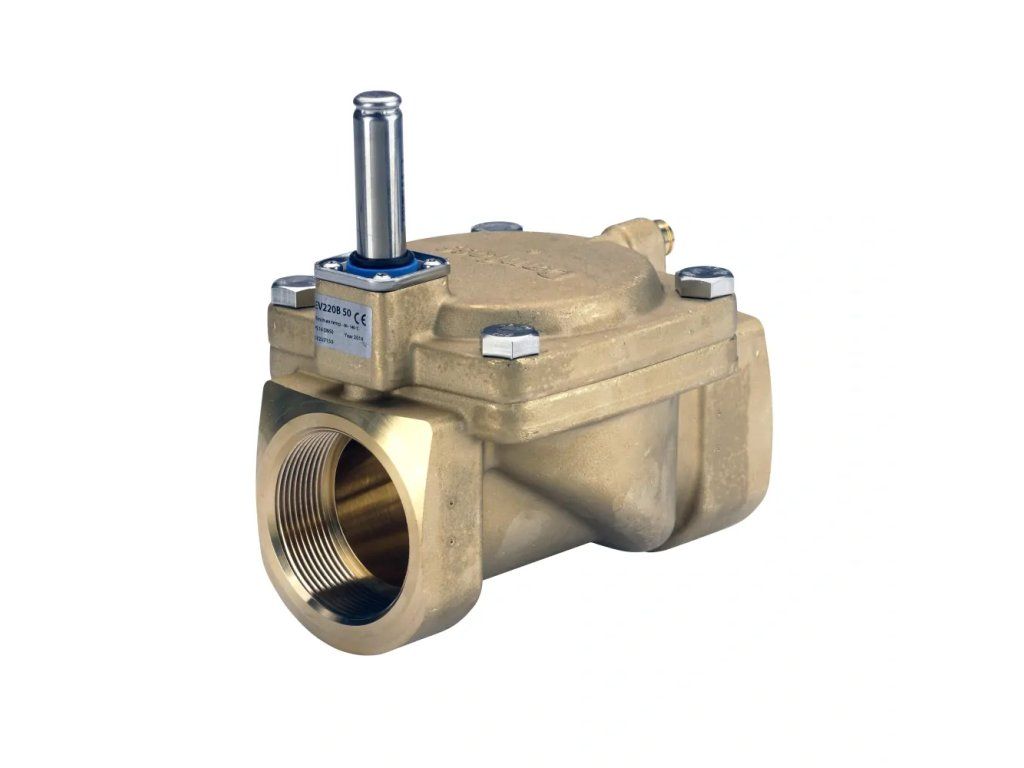

Solenoid valve, EV220BW, Funkce: NO, G, 2, 40 m³/h, EPDM (132U5001)
Code: 132U5001Related products
![Solenoid coil, BE230AS, Terminal box, Supply voltage [V] AC: 220 - 230, Multi-pack (018F6701)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4548_solenoid-coil--be230as--terminal-box--supply-voltage--v--ac--220-230--multi-pack--018f6701-.jpg?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BE024AS, Terminal box, Supply voltage [V] AC: 24, Multi-pack (018F6707)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4551_solenoid-coil--be024as--terminal-box--supply-voltage--v--ac--24--multi-pack--018f6707-.jpg?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BB230AS, DIN plug, Supply voltage [V] AC: 230, Multi-pack (018F7351)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4533_solenoid-coil--bb230as--din-plug--supply-voltage--v--ac--230--multi-pack--018f7351-.png?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BB024AS, DIN plug, Supply voltage [V] AC: 24, Multi-pack (018F7358)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4536_solenoid-coil--bb024as--din-plug--supply-voltage--v--ac--24--multi-pack--018f7358-.png?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
Product detailed description
The Danfoss EV220BW solenoid valve automatically opens and closes the flow of media in a pipe based on an electrical signal. It is designed for controlling liquids and gases in industrial, refrigeration and process systems.
- Function: normally open (NO)
- Connection: G 2 (ISO 228-1)
- Kv flow coefficient: 40 m³/h
- Seal material: EPDM
- Body material: Eco brass
- Number of ways: 2/2
- Media temperature range: -30 to 90 °C
- Max. working pressure: 10 bar
- Differential pressure range: 0.3–10 bar
- Operating principle: Servo-operated (diaphragm)
- Suitable media: Drinking Water&Heating ECO/SS
- Approvals: ACS, PZH, RISE, SINTEF, WRAS
Additional parameters
| Category: | EV220BW, EV228BW |
|---|---|
| Weight: | 4.35 kg |
| EAN: | 5715162489864 |
| Outlet connection standard: | ISO 228-1 |
| Inlet connection standard: | ISO 228-1 |
| Medium temperature range [°C] [max]: | 90 |
| Connection standard: | ISO 228-1 |
| Outlet connection type: | G |
| China RoHS exemption clause: | No |
| Specification key: | EV220BW 50BE G 2E NO000 |
| Actuator system [mm]: | 13.5 |
| Function: | NO |
| Max. test pressure [psig]: | 217.5 |
| Outlet size [in]: | 2 in |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Media tolerance comments: | Slightly aggressive media |
| Operation: | Servo-operated (diaphragm) |
| Product accessories: | Solenoid valve accessories |
| Connection type: | G |
| Connection size [in]: | 2 |
| Connection material: | Eco brass |
| Parts Program name: | EV220BW 15 - 50 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Eco brass |
| Differential pressure [psi] [min]: | 4.351 |
| Orifice size [mm]: | 50.00 |
| Open/close equalizing orifice: | Optional Equalization orifice |
| Medium temperature range [°F] [min]: | -22 |
| Max. Working Pressure note: | Liquids: max 10 bar/145 psi |
| Type of accessory/spare part (EF000215): | Other |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 46.200 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes |
| Packing format: | Single pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 40.000 |
| Approval: | ACS, PZH, RISE, SINTEF, WRAS |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | BW |
| Type designation: | EV220BW 50 |
| REACH Candidate List substances: | No |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Approval comments: | WRAS (0 – 85°C) |
| Contains batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 194 |
| Spare part (EF013237): | TRUE |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 2 in |
| Inlet size [in]: | 2 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Open |
| Inlet Internal/External: | Internal |
| Accessory (EF013236): | TRUE |
| Max media viscosity [cSt]: | 50 |
| EPD available: | Yes |
| Max. test pressure [bar]: | 15.0 |
| Quantity per packing format: | 1 |
| Max. Working Pressure [psig]: | 145 |
| Inlet connection type: | G |
| Media recommendations: | Drinking Water&Heating ECO/SS |
| Outlet Internal/External: | Internal |
-
