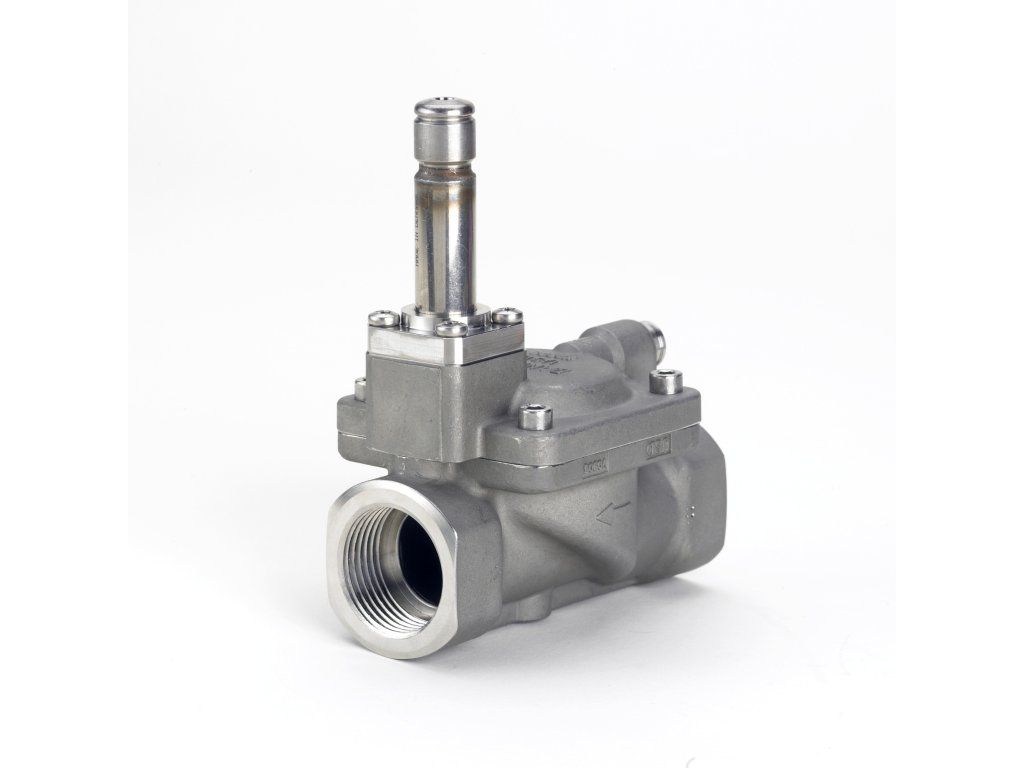

Solenoid valve, EV222B, Function: NC, G, 1, 11 m³/h, FKM (032U8528)
Code: 032U8528Related products
![Solenoid coil, BB230AS, DIN plug, Supply voltage [V] AC: 230, Multi-pack (018F7351)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4533_solenoid-coil--bb230as--din-plug--supply-voltage--v--ac--230--multi-pack--018f7351-.png?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BB024AS, DIN plug, Supply voltage [V] AC: 24, Multi-pack (018F7358)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4536_solenoid-coil--bb024as--din-plug--supply-voltage--v--ac--24--multi-pack--018f7358-.png?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
Product detailed description
The Danfoss EV222B solenoid valve automatically opens and closes the flow of media in a pipe based on an electrical signal. It is designed for controlling liquids and gases in industrial, refrigeration and process systems.
- Function: normally closed (NC)
- Connection: G 1 (ISO 228-1)
- Kv flow coefficient: 11 m³/h
- Seal material: FKM
- Body material: Stainless steel
- Number of ways: 2/2
- Media temperature range: 0 to 50 °C
- Max. working pressure: 10 bar
- Differential pressure range: 0.3–10 bar
- Operating principle: Servo-operated (diaphragm)
- Suitable media: Technical & Soft Water
Additional parameters
| Category: | EV222B pro agresivní média |
|---|---|
| Weight: | 1.21 kg |
| EAN: | 5702423124466 |
| Housing material (EF001596): | Stainless steel |
| Medium temperature range [°C] [max]: | 50 |
| Min. pressure difference (EF020189): | 0.300 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 1000 |
| China RoHS exemption clause: | No |
| Est. time to open, water [ms]: | 300 |
| Kvs value (EF022466): | 11.000 |
| Specification key: | EV222B 25SS G 1F NC000 |
| Height (EF000040): | 75 |
| Actuator system [mm]: | 13.5 |
| Material quality (EF001257): | Other |
| Function: | NC |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | 0 |
| Ambient temperature max. [°C]: | 60 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | FKM |
| Ambient temperature max. [°F]: | 140 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Media tolerance comments: | Aggressive media, Contaminated media |
| Operation: | Servo-operated (diaphragm) |
| Connection type: | G |
| Connection size [in]: | 1 |
| Connection material: | Stainless steel |
| Parts Program name: | EV222B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Stainless steel |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 25.00 |
| Open/close equalizing orifice: | Optional Equalization orifice |
| Medium temperature range [°F] [min]: | 32 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 12.700 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 11.000 |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | B |
| Type designation: | EV222B 25 |
| REACH Candidate List substances: | No |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 122 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 1 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Max. viscosity (EF025190): | 50 |
| Differential pressure [psi] [max]: | 145.000 |
| Max media viscosity [cSt]: | 50 |
| Max. test pressure [bar]: | 15.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 12 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Technical & Soft Water |
-
Solenoid valve Type EV222B: Instalační příručka
-
Solenoid valve, type EV222B: Datový list
-
Adap-Kool Selection Guide: Aplikační příručka
