Solenoid valve, EV224B, Funkce: NO, G, 1/2, 4 m³/h, NBR (032U8361)
Code: 032U8361Related products
![Solenoid coil, BE230AS, Terminal box, Supply voltage [V] AC: 220 - 230, Multi-pack (018F6701)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4548_solenoid-coil--be230as--terminal-box--supply-voltage--v--ac--220-230--multi-pack--018f6701-.jpg?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BE024AS, Terminal box, Supply voltage [V] AC: 24, Multi-pack (018F6707)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4551_solenoid-coil--be024as--terminal-box--supply-voltage--v--ac--24--multi-pack--018f6707-.jpg?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BB230AS, DIN plug, Supply voltage [V] AC: 230, Multi-pack (018F7351)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4533_solenoid-coil--bb230as--din-plug--supply-voltage--v--ac--230--multi-pack--018f7351-.png?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
![Solenoid coil, BB024AS, DIN plug, Supply voltage [V] AC: 24, Multi-pack (018F7358)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4536_solenoid-coil--bb024as--din-plug--supply-voltage--v--ac--24--multi-pack--018f7358-.png?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
Product detailed description

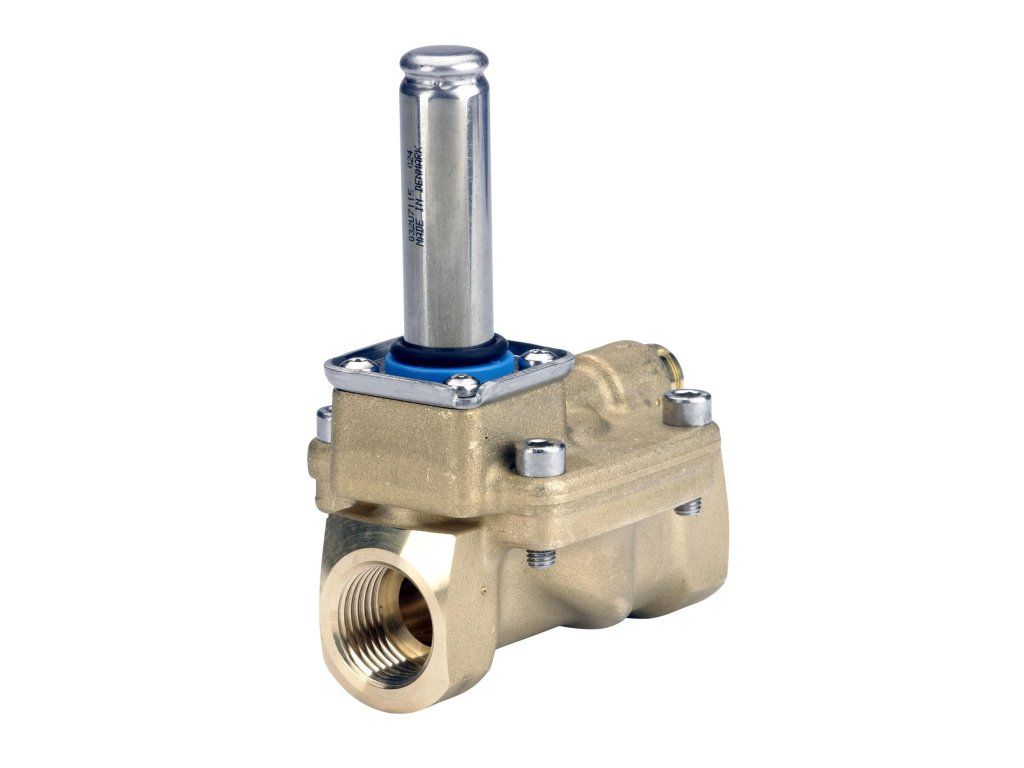

The Danfoss EV224B solenoid valve automatically opens and closes the flow of media in a pipe based on an electrical signal. It is designed for controlling liquids and gases in industrial, refrigeration and process systems.
- Function: normally open (NO)
- Connection: G 1/2 (ISO 228-1)
- Kv flow coefficient: 4 m³/h
- Seal material: NBR
- Body material: Brass
- Number of ways: 2/2
- Media temperature range: -10 to 60 °C
- Max. working pressure: 40 bar
- Differential pressure range: 0.3–40 bar
- Operating principle: Servo-operated (diaphragm)
- Suitable media: Compressed air
- Approvals: DNVGL-CG-0339
Additional parameters
| Category: | EV224B pro tlak do 40 bar |
|---|---|
| Weight: | 0.72 kg |
| EAN: | 5702423163915 |
| Housing material (EF001596): | Brass |
| Medium temperature range [°C] [max]: | 60 |
| Min. pressure difference (EF020189): | 0.300 |
| Connection standard: | ISO 228-1 |
| China RoHS exemption clause: | 7.3 |
| Kvs value (EF022466): | 4.000 |
| Specification key: | EV224B 15B G 12N NO000 |
| Height (EF000040): | 93 |
| SCIP dossier no.: | e29455d7-2910-4940-834b-fbffe7be352f |
| Actuator system [mm]: | 13.5 |
| Material quality (EF001257): | Other |
| Function: | NO |
| Max. test pressure [psig]: | 870.0 |
| Medium temperature range [°C] [min]: | -10 |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | Internal |
| Serviceable: | Solenoid valve spare parts |
| Seal Material: | NBR |
| Ambient temperature max. [°F]: | 122 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Media tolerance comments: | Air with/without mineral oil, Air with/without synthetic oil |
| Operation: | Servo-operated (diaphragm) |
| Connection type: | G |
| Connection size [in]: | 1/2 |
| Connection material: | Brass |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Brass |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 15.00 |
| Open/close equalizing orifice: | Optional Equalization orifice |
| Medium temperature range [°F] [min]: | 14 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 4.600 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 4.000 |
| Approval: | DNVGL-CG-0339 |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | B |
| Type designation: | EV224B 15 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 40.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 40.0 |
| Medium temperature range [°F] [max]: | 140 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 5/8 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Max. viscosity (EF025190): | 50 |
| Differential pressure [psi] [max]: | 580.000 |
| Application: | Open |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV224B NO - solenoid valve |
| Max. test pressure [bar]: | 60.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 24 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 580 |
| Media recommendations: | Compressed air |
-
