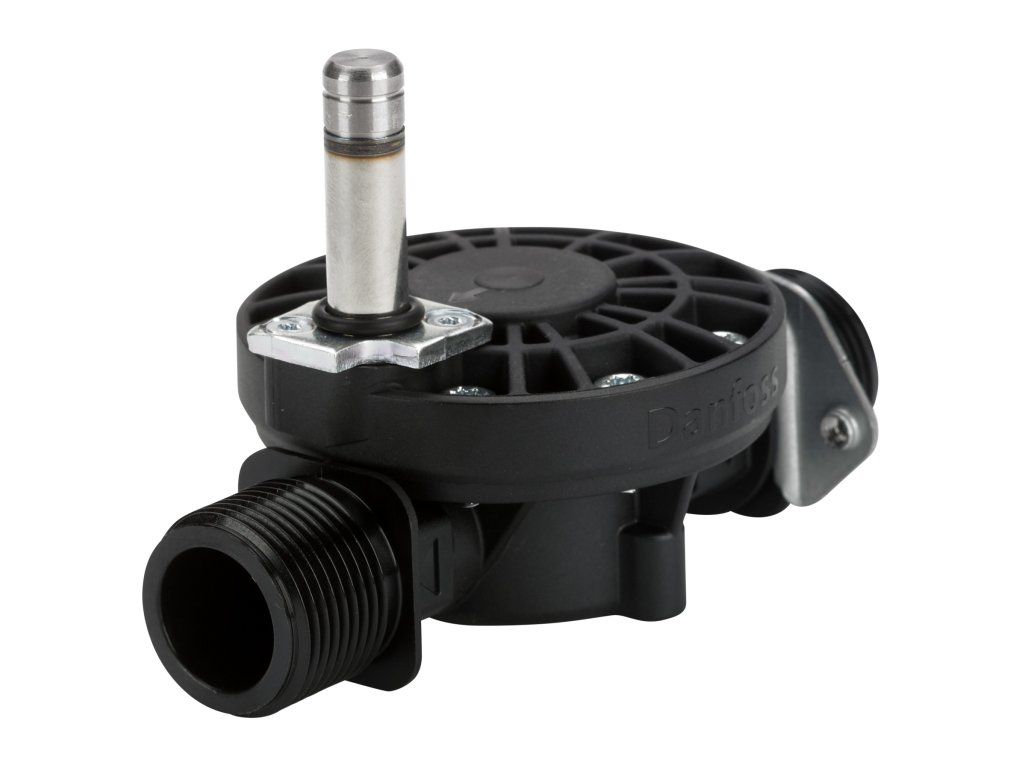

Solenoid valve, EV220T, Function: NC, G, 3/4, 6 m³/h, EPDM (042U8175)
Code: 042U8175Related products
![Solenoid coil, AS230CS, DIN plug, Supply voltage [V] AC: 230, Multi-pack (042N7601)](https://cdn.myshoptet.com/usr/www.damatech.eu/user/shop/detail/4572_solenoid-coil--as230cs--din-plug--supply-voltage--v--ac--230--multi-pack--042n7601-.jpg?ff=1&x=423&y=318&q=85&ts=67e88fe6&sg=2175fb9d
)
Product detailed description
The Danfoss EV220T solenoid valve automatically opens and closes the flow of media in a pipe based on an electrical signal. It is designed for controlling liquids and gases in industrial, refrigeration and process systems.
- Function: normally closed (NC)
- Connection: G 3/4
- Kv flow coefficient: 6 m³/h
- Seal material: EPDM
- Body material: Polymer
- Number of ways: 2/2
- Media temperature range: 0 to 85 °C
- Max. working pressure: 10 bar
- Differential pressure range: 0.3–10 bar
- Operating principle: Servo-operated (diaphragm)
- Suitable media: Water & Brine
- Approvals: WRAS
Additional parameters
| Category: | EV220T |
|---|---|
| Weight: | 0.17 kg |
| EAN: | 5702428989428 |
| Housing material (EF001596): | Plastic |
| Medium temperature range [°C] [max]: | 85 |
| Min. pressure difference (EF020189): | 0.300 |
| Est. time to close, water [ms]: | 500 |
| China RoHS exemption clause: | 7.3 |
| Est. time to open, water [ms]: | 200 |
| Specification key: | EV220T 18P GE 34E NC000 |
| Height (EF000040): | 75 |
| SCIP dossier no.: | 702da5b9-fdc0-4987-a36b-2f0941b89788 |
| Actuator system [mm]: | 9.0 |
| Material quality (EF001257): | Other |
| Function: | NC |
| Max. test pressure [psig]: | 290.0 |
| Medium temperature range [°C] [min]: | 0 |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | External |
| Serviceable: | No |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 122 |
| Surface protection (EF000139): | Other |
| Explosion safety (EF003996): | None |
| Operation: | Servo-operated (diaphragm) |
| Product accessories: | Solenoid valve accessories |
| Connection type: | G |
| Connection size [in]: | 3/4 |
| Connection material: | Polymer |
| Parts Program name: | EV220T |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Polymer |
| Differential pressure [psi] [min]: | 4.351 |
| Emergency manual operation (EF025189): | Other |
| Orifice size [mm]: | 18.00 |
| Medium temperature range [°F] [min]: | 32 |
| Fluid Group: | 2 |
| Actuator size: | 9 mm clip-on T |
| Cv value [gal/min]: | 6.950 |
| Actuator size [in]: | 0.35 in |
| China RoHS compliance: | Yes with exemptions |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 6.000 |
| Approval: | WRAS |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | T |
| Type designation: | EV220T 18 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 185 |
| Flow direction: | Single-flow |
| Orifice size fraction [in]: | 3/4 in |
| Flow direction indicator: | Embossed 1-way arrow |
| Differential pressure [psi] [max]: | 145.038 |
| Application: | Open |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV220T- solenoid valve |
| Max. test pressure [bar]: | 15.0 |
| Model (EF000010): | Straight |
| Quantity per packing format: | 12 |
| Freeflow (EF020116): | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water & Brine |
-
