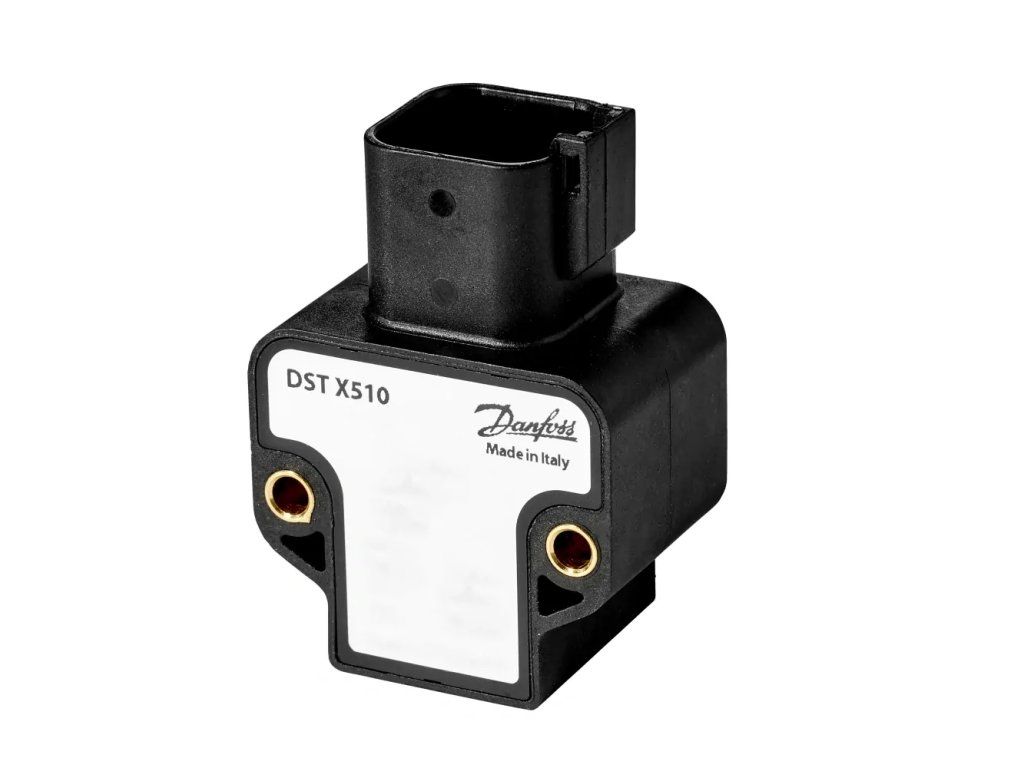

Rotary position sensor, DST X510, 30 ° (098G1011)
Code: 098G1011Product detailed description
The Danfoss DST X510 rotary position sensor is a contactless angle sensor designed for mobile hydraulics and industrial applications requiring reliable angular position sensing without mechanical wear.
- Measuring range: 30°
- Rotation direction: CW + CCW
- Output signal: Ratio metric
- Electrical connection: Deutsch (DT04-6P)
- Supply voltage: 5 V DC
- Enclosure rating: IP67
- Included in delivery: NE
- Approvals: CE
Additional parameters
| Category: | Rotary sensors |
|---|---|
| Weight: | 0.07 kg |
| EAN: | 5714279905236 |
| Accessories: | NE |
| Electrical connection size: | 6 pin |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| UL evaluated: | Out of scope |
| Approval: | CE |
| Specification key: | DR030030LA13A00 0033X00 |
| Rotational direction: | CW + CCW |
| SCIP dossier no.: | a707096f-52fa-4871-9e91-55f08f6518d1 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DT04-6P |
| Contains batteries: | No |
| Circuit type: | Redundant |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Electrical connection: | Deutsch |
| Output signal: | Ratio metric |
| Angle/Channel 2 [°]: | 30 |
| Enclosure rating IP: | IP67 |
| Degree of protection (IP): | IP67 |
| SCIP dossier product name: | GRA |
| Supply voltage [V] DC: | 5.00 |
| Quantity per packing format: | 20 |
| Angle/Channel 1 [°]: | 30 |
-
