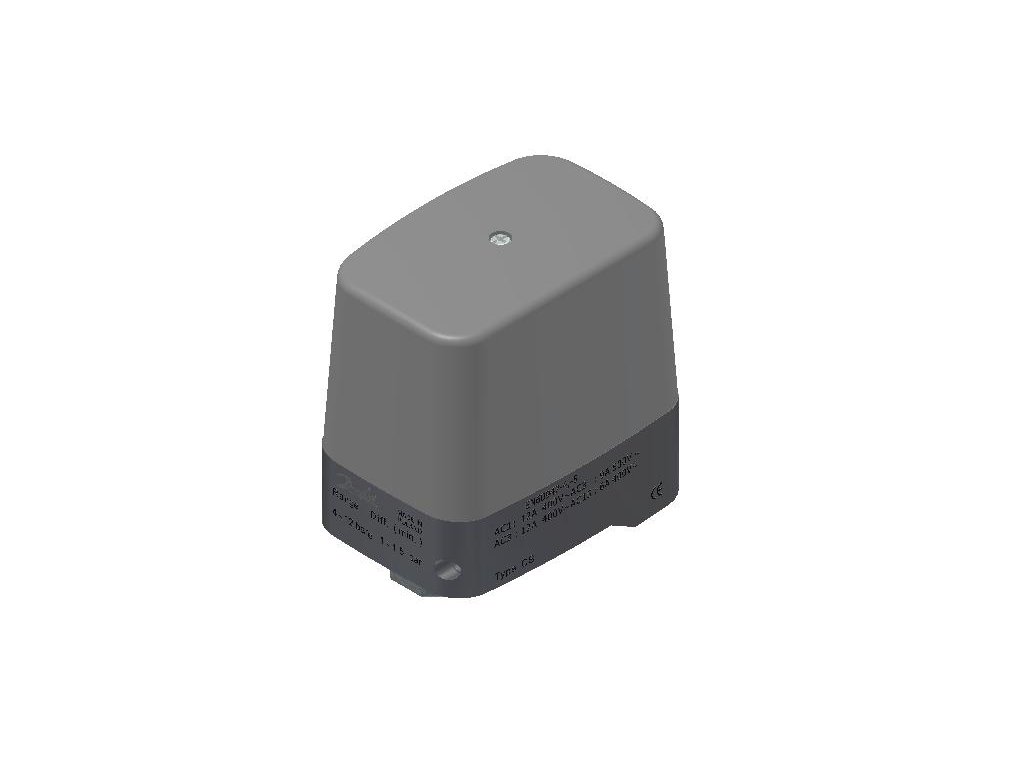

Pressure switch, CS (031E023566)
Code: 031E023566Product detailed description
The Danfoss CS series pressure switch has a diaphragm sensing element and is designed for applications requiring a wider control range in industrial and refrigeration systems.
- Control range: 4–12 bar
- Max. working pressure: 12 bar
- Sensing element: diaphragm
- Pressure connection: G 1/2 (ISO 228-1)
- Contact function: TPST
- Reset: automatic reset
- Electrical connection: Screwed cable entry (DIN 40430)
- Enclosure rating: IP55
- Ambient temperature range: -20 to 70 °C
- Approvals: CE, EAC, LLC CDC EURO-TYSK, LVD, RoHS, TYSK
Additional parameters
| Category: | CS |
|---|---|
| Weight: | 0.44 kg |
| EAN: | 5702423208708 |
| Ambient temperature range [°F] [min]: | -4 |
| Electrical connection size: | Pg 16 |
| Connection (EF000443): | External thread cylindrical BSPP-G (ISO 228-1) |
| Height (EF000040): | 69 |
| Contact function: | TPST |
| SCIP dossier no.: | e65e8dcc-5aa5-41db-aed7-9aec2d1ff7f0 |
| Pressure connection size: | 1/2 |
| Max. test pressure [psig]: | 290.0 |
| Pressure connection standard: | ISO 228-1 |
| Width (EF000008): | 128 |
| Electrical connection: | Screwed cable entry |
| Max. operating pressure (EF020449): | 12.0 |
| Diff.@Min. range setting [bar] [max]: | 1.50 |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP55 |
| Ambient temperature range [°C] [min]: | -20 |
| Diff.@Min. range setting [bar] [min]: | 1.00 |
| Regulation range [psig] Pe [min]: | 58.00 |
| Diff.@Max. range setting [bar] [min]: | 2.00 |
| Regulation range [bar] Pe [max]: | 12.00 |
| Max. test pressure [bar] Pe: | 20.0 |
| Product accessories: | Switches accessories |
| Regulation range [bar] Pe [min]: | 4.00 |
| Pressure Male/Female: | Female |
| Depth (EF000049): | 138 |
| Contact rating: | AC3=12 A, 220 - 415 V, AC3=9 A, 600 V, DC13=2 A, 220 V, DC14=2 A, 220 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Pressure connection type: | G |
| Thread size (EF022694): | 1/2 inch |
| Product description: | Pressure Switch |
| China RoHS compliance: | Out of scope |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi pack |
| In scope of WEEE: | Yes |
| Approval: | CE, EAC, LLC CDC EURO-TYSK, LVD, RoHS, TYSK |
| Electrical conn. Male/Female: | Female |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contains batteries: | No |
| CE mark: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 12.0 |
| Pressure sensing element: | Diaphragm |
| Diff.@Max. range setting [bar] [max]: | 4.00 |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP) (EF005474): | IP55 |
| SCIP dossier product name: | CS Pressure Switch |
| Regulation range [psig] Pe [max]: | 174.00 |
| Quantity per packing format: | 30 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 174 |
| Explosion-proof (EF004663): | FALSE |
-
