Termostat, KP81 (060L118366)
Kód: 060L118366Související produkty
Detailní popis produktu

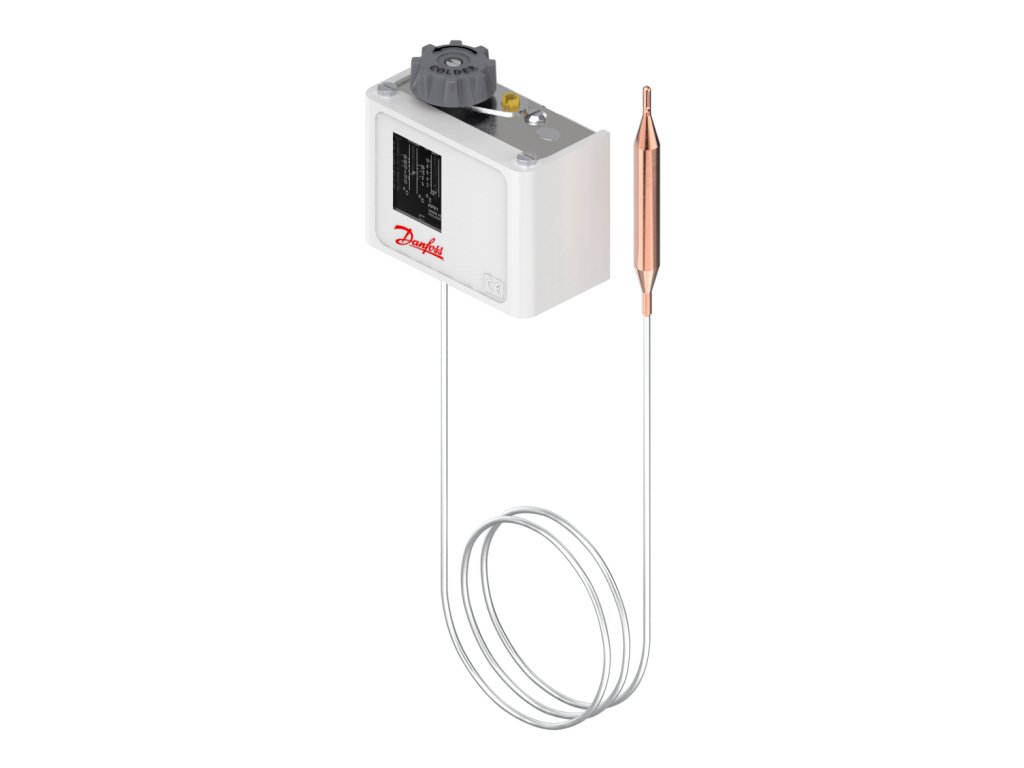

Termostat Danfoss řady KP je osvědčený teplotní spínač s kapilárovým čidlem, tradičně používaný pro regulaci a ochranu chladicích a klimatizačních systémů.
- Rozsah nastavení teploty: 80 až 150 °C
- Nastavitelná diference (spodní hranice rozsahu): 6–20 °C
- Typ čidla: vzdálené kapilárové čidlo
- Rozměr čidla (Ø x L): 9.5 x 85 mm
- Délka kapiláry: 3000 mm
- Max. teplota čidla: 200 °C
- Typ náplně: Adsorption
- Funkce kontaktu: SPDT
- Reset: automatický reset
- Elektrické připojení: Rubber cable gland
- Krytí: IP30
- Rozsah okolní teploty: -40 až 65 °C
- Schválení: BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LVD, RINA, RMRS, RoHS China, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2
Doplňkové parametry
| Kategorie: | KP |
|---|---|
| Hmotnost: | 0.4 kg |
| EAN: | 5702423148776 |
| Diff. @ Max. range setting[°C] [min]: | 7.0 |
| Ambient temperature range [°F] [min]: | -40 |
| Cap. tube length fraction [in]: | 118 1/8 in |
| Diff. @ Min. range setting[°C] [min]: | 6.0 |
| Max. sensor temperature [°F]: | 392.0 |
| Electrical connection size: | 6-14 mm |
| UL mark: | Yes |
| Enclosure rating Nema (~): | 1 |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Height (EF000040): | 48 |
| Contact function: | SPDT |
| SCIP dossier no.: | c1a694ec-501f-43db-83d2-8a9a314459e0 |
| Charge type: | Adsorption |
| Diff. @ Min. range setting[°C] [max]: | 20.0 |
| Width (EF000008): | 48 |
| Electrical connection: | Rubber cable gland |
| Temperature range [°F] [min]: | 176 |
| Differential type: | Adjustable |
| Serviceable: | No |
| Reset function: | Auto |
| Enclosure rating IP: | IP30 |
| Ambient temperature range [°C] [min]: | -40 |
| Diff. @ Max. range setting[°C] [max]: | 23.0 |
| Product accessories: | Switches accessories |
| Sensor size (Ø x L) [in]: | 3/8 x 3 3/8 in |
| Depth (EF000049): | 48 |
| Contact rating: | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| Diff. @ Max. range setting [K] [min]: | 7.0 |
| IFTTT support available (EF011072): | FALSE |
| Compatible with Apple HomeKit (EF014925): | FALSE |
| Compatible with Google Assistant (EF014926): | FALSE |
| Diff. @ Min. range setting [K] [min]: | 6.0 |
| Product description: | Thermostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-5 |
| Packing format: | Multi pack |
| Max. sensor temperature [°C]: | 200 |
| Approval: | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LVD, RINA, RMRS, RoHS China, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1), Cadmium oxide (CAS no.1306-19-0) |
| Diff. @ Max. range setting [K] [max]: | 23.0 |
| Contains batteries: | No |
| CE mark: | Yes |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Sensor size (Ø x L) [mm]: | 9.5 x 85 mm |
| Ambient temperature range [°C] [max]: | 65 |
| Degree of protection (IP) (EF005474): | IP30 |
| Temperature range [°F] [max]: | 302 |
| UL approval file name: | E31024, MH27572 |
| SCIP dossier product name: | KP KPS KPU Thermostat |
| Temperature range [°C] [min]: | 80 |
| EN 60947 electrical properties: | Insulation: 400V, Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 16A |
| Diff. @ Min. range setting [K] [max]: | 20.0 |
| Sensor type: | Remote bulb |
| Compatible with Amazon Alexa (EF014927): | FALSE |
| Temperature range [°C] [max]: | 150 |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 150 |
| Capillary tube length [mm]: | 3000 |
| Explosion-proof (EF004663): | FALSE |
-
District Heating and Boiler Applications: Brožurka
-
Pressure switch and thermostat type KP and KPI: Datový list
-
Danfoss Sensing Solutions for the marine sector: Brožurka
-
Thermostat type KP: Datový list
-
Tlakový spínač a termostat KP a KPI: Datový list
-
Thermostat KP 61 – KP 85: Instalační příručka
